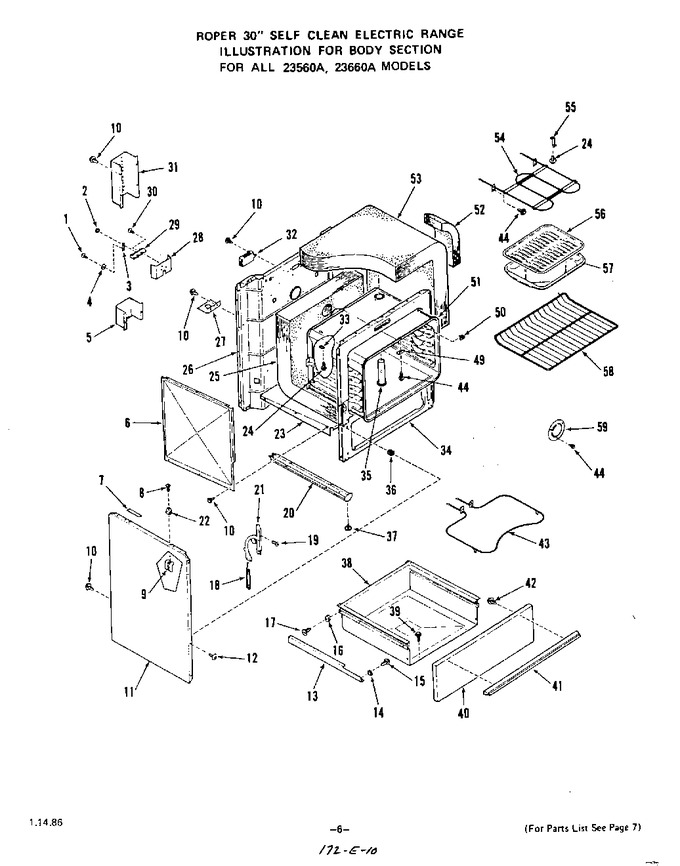

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313191		Screw 10-32x7/16``		Appelez-nous	-
2	97816		Hex Nut 10-32		Appelez-nous	-
3	327255		Ground Strap		Appelez-nous	-
4	299425		Washer		Appelez-nous	-
5	327258		Wire Shield-lower		Appelez-nous	-
6	313284		Retainer-insulation (lt. Or Rt.)		Appelez-nous	-
7	326914		Spacer-main Top (lt. Or Rt.)		Appelez-nous	-
8	327256		Screw 6-32x7/8``		Appelez-nous	-
9	326516		Bracket-body Side (lt. Or Rt.)		Appelez-nous	-
10	327320		Screw 10-16x7/16``		Appelez-nous	-
11	327939		Platinum		Appelez-nous	-
11	327940		Toast		Appelez-nous	-
11	326059		Almond		Appelez-nous	-
11	326055		White		Appelez-nous	-
11	326102		Body Side (lt. Or Rt.) (black)		Appelez-nous	-
12	314124		Screw 8abx5/8``		Appelez-nous	-
13	311441		Support-storage Drawer (lt. Or Rt.)		Appelez-nous	-
14	281914		Slide Block-front (lt. Or Rt.)		Appelez-nous	-
15	295849		Screw 10-32x17/32``		Appelez-nous	-
16	281913		Slide Block-rear (lt. Or Rt.)		Appelez-nous	-
17	DE81-02123A		Screw 8 - 32 X 3/8``   (Replaces: 102563)				$ 1.66
18	326963		All 2354 Models		Appelez-nous	-
18	326964		All 2364 Models		Appelez-nous	-
19	331704		Screw		Appelez-nous	-
20	326050		Base W/levelers (lt. Or Rt.)		Appelez-nous	-
21	326013		Left		Appelez-nous	-
21	326012		Right		Appelez-nous	-
22	326513		Strike-main Top (lt. Or Rt.)		Appelez-nous	-
23	313281		Insulation Retainer-bottom		Appelez-nous	-
24	327320		Screw 10-16x7/16``		Appelez-nous	-
25	308861		Insulation-oven Bottom & Back (1 Piece)		Appelez-nous	-
26	325879		Main Back		Appelez-nous	-
27	327259		Plate-range Service Mounting		Appelez-nous	-
28	327242		Insulator-service Cord		Appelez-nous	-
29	290105		Junction Block		Appelez-nous	-
30	313190		Screw 10-32x1``		Appelez-nous	-
31	327235		Shield-upper Wire		Appelez-nous	-
32	239802		Relay-oven		Appelez-nous	-
33	237762		Plate-thermostat Bulb Cover		Appelez-nous	-
34	331587		Front Frame		Appelez-nous	-
35	331723		Tube-vent		Appelez-nous	-
36	330031		Spacer-expansion Nut (6 Req)   (Replaces: 312605)			Immediately	$ 17.93
37	326052		Leveler-leg (4 Req)		Appelez-nous	-
38	296150		Drawer-storage		Appelez-nous	-
39	316365		Screw 10-32x7/16``		Appelez-nous	-
40	328355		Platinum		Appelez-nous	-
40	326073		White		Appelez-nous	-
40	326077		Almond		Appelez-nous	-
40	328347		Toast		Appelez-nous	-
40	326078		Panel-storage Drawer (black)		Appelez-nous	-
41	292240		Handle		Appelez-nous	-
42	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
43	WG02F05414		Element-bake   (Replaces: 325883)			Immediately	$ 111.99
44	327320		Screw 10-16x7/16``		Appelez-nous	-
49	304835		Cover		Appelez-nous	-
50	321539		Retainer-thermostat Bulb		Appelez-nous	-
51	331578		Oven Body		Appelez-nous	-
52	303097		Insulation-rt. Or Lt.		Appelez-nous	-
53	308860		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
54	326360		Element-broil		Appelez-nous	-
55	324808		Support-broil Element (2 Req)		Appelez-nous	-
56	326297		Grid-broiler Pan		Appelez-nous	-
57	331592		Pan-broiler		Appelez-nous	-
58	326069		Rack-oven (2 Req)		Appelez-nous	-
59	326935		Cover-oven Light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
