Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2154789 Heater, Dispenser Appelez-nous -
2 WP489128 Screw, Ground   (Replaces: 488500) Special Order $ 11.40

4 2155813 Housing, Dispenser (white) Appelez-nous -
4 2155814 Housing, Dispenser (almond) Appelez-nous -
5 W11693756 Screw   (Replaces: 488687) In-Stock Immediately $ 14.76

7 983691 Gasket, Door Special Order $ 6.61

8 987121 Shield, Ice Door Special Order $ 5.91

9 983690 Door, Ice Special Order $ 11.13

10 938669 Door Mechanism Assembly Appelez-nous -
11 227991 Wire Connector Appelez-nous -
12 WP1120581 Mechanism Delay   (Replaces: 1120581) Special Order $ 223.72

13 1126120 Grille, Overflow (white) Appelez-nous -
13 1126121 Grille, Overflow (almond) Appelez-nous -
14 987917 Clip, Bearing (2) Appelez-nous -
15 983697 Bearing, Lever (3) Appelez-nous -
16 983696 Spring, Lever (2) Special Order $ 21.26

17 984494 Shield, Wiring Appelez-nous -
24 2177144 Lever, Ice Dispenser (white) Special Order $ 42.05

24 2177145 Lever, Ice Dispenser (almond) Appelez-nous -
25 1124730 Guide, Ice (white) Special Order $ 19.06

25 1126026 Guide, Ice (almond) Appelez-nous -
26 488892 Screw Appelez-nous -
28 482672 Seal Appelez-nous -
30 489155 Screw, Appelez-nous -
32 984683 Insulator, Switch Appelez-nous -
33 1116811 Bracket, Control Appelez-nous -
39 2180425 Plaque, Front Cover (white) Appelez-nous -
39 2180426 Plaque, Front Cover (almond) Appelez-nous -
40 2180428 Front Cover, Housing (includes Item 39) (almond) Appelez-nous -
40 2180427 Front Cover, Housing (includes Item 39) (white) Appelez-nous -
41 WP2162361 Switch   (Replaces: 2162361) In-Stock Immediately $ 28.71

43 488316 Screw Appelez-nous -
44 1118374 Wiring Assembly, Door Appelez-nous -
45 WP3400906 Screw   (Replaces: 489000) Special Order $ 9.05


    View Diagram in Separate Window     Print Icon   Print Part List

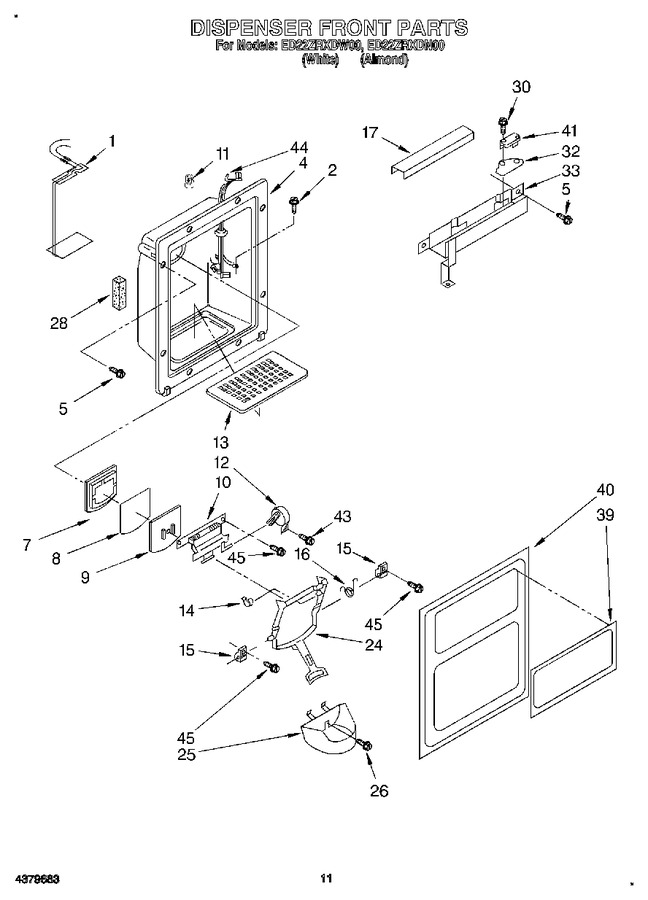

Diagram for ED22ZRXDN00
