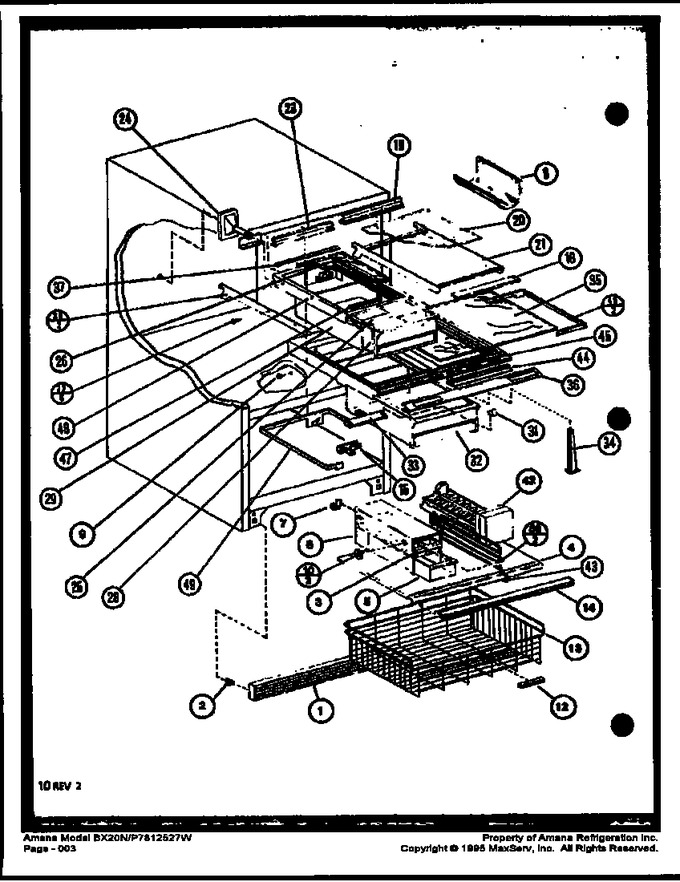

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520506		Grille-toe K		Appelez-nous	-
1	D7520508		Grille-toe L		Appelez-nous	-
1	D7520507		Grille, Toe, Gold		Appelez-nous	-
2	M0117301		Clip, Grille		Appelez-nous	-
3	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
4	D7681202		Shelf		Appelez-nous	-
5	D7620013		Ice Bin		Appelez-nous	-
6	D7620108		Rack, Ice Service		Appelez-nous	-
7	B5720301		Clip		Appelez-nous	-
8	D7547603		Rack, Bottle		Appelez-nous	-
9	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
10	M0270508		Washer		Appelez-nous	-
12	B0571806		Handle Basket		Appelez-nous	-
13	D7677401		Basket Frz		Appelez-nous	-
14	C8832509		Trim Shelf		Appelez-nous	-
15	D7859401		Slide-mk Control		Appelez-nous	-
18	C8913507		Trim, Front Shelf		Appelez-nous	-
19	C8913603		Trim, Shelf Rear		Appelez-nous	-
20	D7421281		Glass Shelf		Appelez-nous	-
21	D7871002		Frame, Cantilever		Appelez-nous	-
22	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
23	C8990403		Trim		Appelez-nous	-
24	D7859302		Grommet M.k.		Appelez-nous	-
25	C8913528		Trim, Front Shelf		Appelez-nous	-
26	D7421253		Glass Shelf Mk		Appelez-nous	-
28	D7698318		Meat Pan		Appelez-nous	-
29	D7698107		Sleeve M.k.		Appelez-nous	-
30	D7862903		Blank Side Rail		Appelez-nous	-
30	D7862904		Blank Side Rail		Appelez-nous	-
31	10038401		Knob, Crisper Control		Appelez-nous	-
32	D7581028		Pan, Crisper		Appelez-nous	-
33	D7860602		Slide Crisper Cont. A		Appelez-nous	-
34	D7602202		Crisper Support Post		Appelez-nous	-
35	D7421259		Glass Crisper Top Gg		Appelez-nous	-
36	D7616627		Trim A		Appelez-nous	-
37	10043101		Ext. Rear Glass		Appelez-nous	-
39	M0219559		Screw		Appelez-nous	-
43	D7815401		Divider, Frz Shelf		Appelez-nous	-
44	D7718402		Seal Crisper		Appelez-nous	-
45	D7856502		Frame Crisper		Appelez-nous	-
46	D7859603		Band Crisper Control		Appelez-nous	-
47	A3263905		Gasket-per Ft		Appelez-nous	-
48	D7853302		Frame M.k. V		Appelez-nous	-
49	D7859503		Band M.k. Control		Appelez-nous	-
NI	R0179151		Glass Crisper Top Assy		Appelez-nous	-
NI	D7871109		Glass Shelf Assy		Appelez-nous	-
