SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Freezer Interior


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Air Flow


12 - Control


13 - Icemaker, Lit/optional

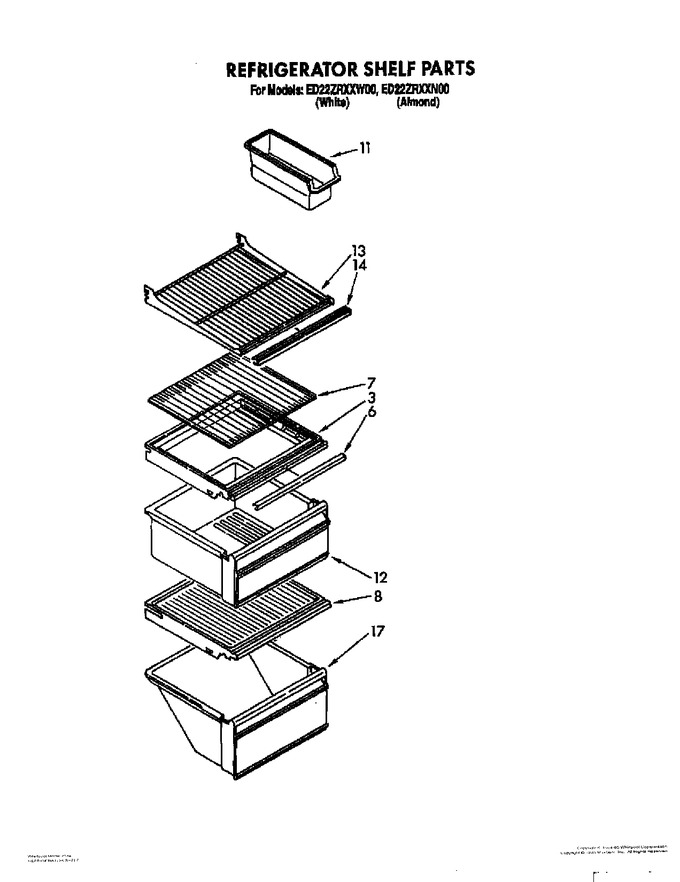

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WP1126289		Cover, Crisper   (Replaces: 2148235)				$ 190.80
6	1110795		Trim, Crisper Cover		Appelez-nous	-
7	1114687		Glass, Crisper Cover				$ 88.24
8	WP2148298		Cover, Meat Pan   (Replaces: 2148298)				$ 183.32
11	WP982704		Container   (Replaces: 2148079)				$ 32.55
12	2148193		Pan, Crisper		Appelez-nous	-
13	1116890		Shelf, Cantilever		Appelez-nous	-
14	1114302		Trim, Shelf		Appelez-nous	-
17	2148192		Pan, Meat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
