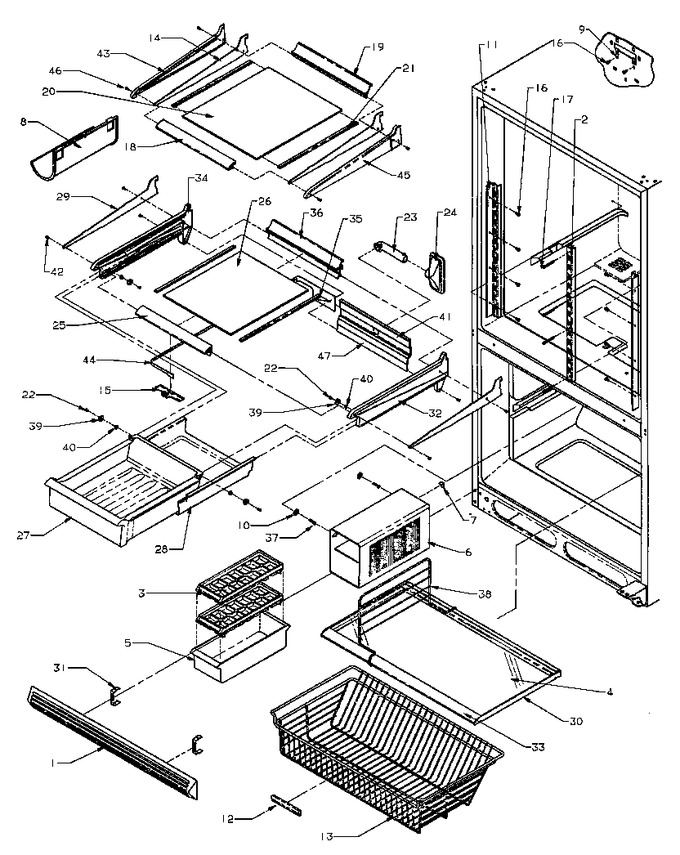

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10474804 | Grille- L Toe V |
|
- | |||||
| 1 | 10474803 | Grille, Toe (gold) |
|
- | |||||
| 1 | 10474802 | Grille, Toe (white) |
|
$ 44.88 | |||||
| 1 | 10474801 | Grille, Toe (black) |
|
- | |||||
| 2 | D7599002 | Ladder, Center |
|
- | |||||
| 3 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 4 | 10370036 | Glass, Shelf |
|
- | |||||
| 5 | 10423117 | Bin, Egg |
|
- | |||||
| 6 | D7620104 | Rack, Ice |
|
- | |||||
| 7 | B5720301 | Clip |
|
- | |||||
| 8 | 10448901 | Rack, Wine |
|
- | |||||
| 9 | M0288214 | Nut, Speed |
|
- | |||||
| 10 | M0270508 | Washer |
|
- | |||||
| 11 | D7599105 | Ladder, Side |
|
- | |||||
| 12 | 10508501 | Handle, Basket |
|
- | |||||
| 13 | 10513401 | Basket, Freezer |
|
- | |||||
| 14 | 10681401 | Rail, Painted |
|
- | |||||
| 15 | 10588201 | Slide, Mtkp Cont. |
|
- | |||||
| 16 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 17 | M0231426 | Screw |
|
- | |||||
| 18 | 10436804 | Ext, Gl Shelf Front |
|
- | |||||
| 19 | 10436901 | Extr, Gl Shelf Rear |
|
- | |||||
| 20 | 10370033 | Glass, Shelf |
|
- | |||||
| 21 | 10562501 | Ext, Gl Shelf Side |
|
- | |||||
| 22 | 67006692 | Screw, Hi Lo (Replaces: M0237932) |
|
$ 10.79 | |||||
| 23 | 10486401 | Tunnel, Air Mt Kp |
|
- | |||||
| 24 | 10501901 | Grommet, Mt. Kpr. |
|
- | |||||
| 25 | 10450304 | Ext, Meat Kpr. Front |
|
- | |||||
| 26 | 10370049 | Glass, Shelf (mk Top) |
|
- | |||||
| 27 | 10417010 | Pan,meatkeeper |
|
- | |||||
| 28 | 10437304 | Sleeve, Mk |
|
- | |||||
| 29 | 10681401 | Rail, Painted |
|
- | |||||
| 30 | 10505801 | Frame, Glass Shelf |
|
- | |||||
| 31 | 10551501 | Clip-toe Grille |
|
- | |||||
| 32 | 10485501 | Glide, R. Mk |
|
- | |||||
| 33 | 10505611 | Extr., Shelf |
|
- | |||||
| 34 | 10485601 | Glide, L. Mk |
|
- | |||||
| 35 | 10562501 | Ext, Gl Shelf Side |
|
- | |||||
| 36 | 10502201 | Extrsn, Meatkeeper |
|
- | |||||
| 37 | M0219559 | Screw |
|
- | |||||
| 38 | 10509001 | Divider, Frz. Shelf |
|
- | |||||
| 39 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 40 | 67006692 | Screw, Shoulder (Replaces: 10481301) |
|
$ 10.79 | |||||
| 41 | 10502501 | Ext, Mt Kpr Band |
|
- | |||||
| 42 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 43 | 10436601 | Cover, Shelf Rail L.h. |
|
- | |||||
| 44 | 10513502 | Band, Mk Control |
|
- | |||||
| 45 | 10436602 | Cover, Shelf Rail |
|
- | |||||
| 46 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 47 | A3189356 | Gasket, Foam |
|
- | |||||
| NI | 10480704 | Assy, Split Shelf |
|
- |
