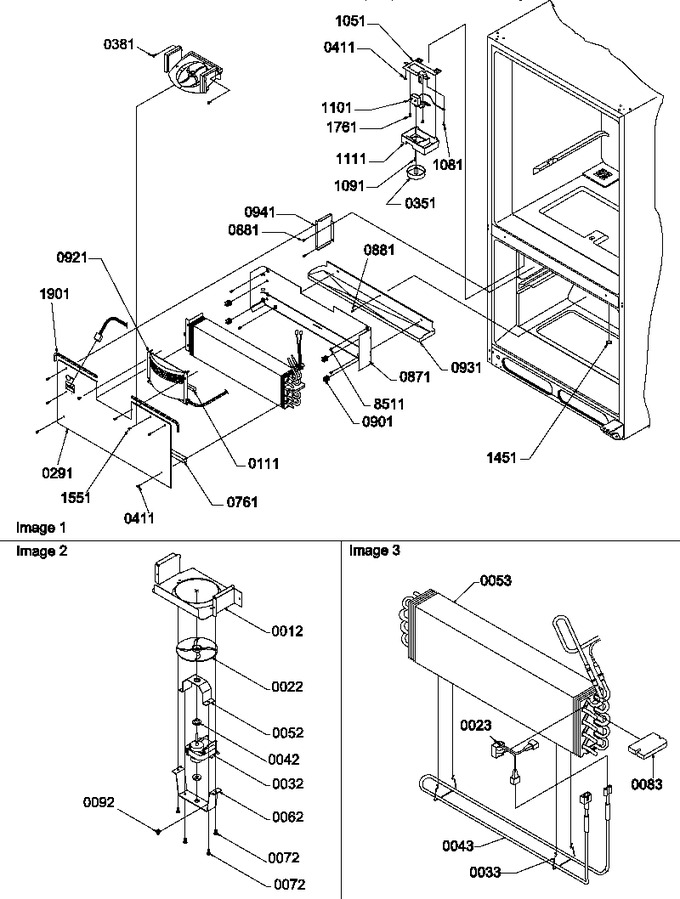

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 10619304 | Shroud, Evap Fan |
|
- | |||||
| 22 | W10116797 | Assy, Fan-evap (Replaces: 10855401) |
|
Immediately | $ 8.56 | ||||
| 23 | WP10442411 | Thermostat, Defrost (Replaces: 10442407) |
|
Immediately | $ 44.02 | ||||
| 32 | GEFM | Motor-evap Fan (Replaces: 10513801) |
|
Immediately | $ 118.50 | ||||
| 33 | W11673433 | Clip, Evap Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 42 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 46.17 | ||||
| 43 | WP10428409 | Heater, Evap (Replaces: 10428409) |
|
$ 158.41 | |||||
| 52 | 10492801 | Brkt, Up Evap. Fan |
|
$ 5.27 | |||||
| 53 | R0170059 | Assy,low Side |
|
- | |||||
| 62 | 10492701 | Brkt, Lwr. Evap. Fan |
|
$ 5.27 | |||||
| 72 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 83 | 10519101 | Block, Evap (r) |
|
- | |||||
| 92 | B5733302 | Clip, Ground |
|
- | |||||
| 105 | 10649801 | Brkt Cont. |
|
- | |||||
| 108 | M0253916 | Screw |
|
- | |||||
| 109 | M0216531 | Screw |
|
- | |||||
| 110 | W10752646 | Control, Temp (Replaces: C8946703) |
|
Immediately | $ 143.12 | ||||
| 111 | D7878815 | Cover, Temp Cont |
|
- | |||||
| 111 | B5759611 | Gasket |
|
- | |||||
| 145 | M0310308 | Plug, Button (wht) |
|
- | |||||
| 155 | M0310305 | Plug, Button (wht) |
|
- | |||||
| 176 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 190 | A3030353 | Gasket |
|
- | |||||
| 291 | 10485406 | Cover, Evap. |
|
- | |||||
| 351 | D7689905 | Knob, Control |
|
- | |||||
| 381 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 411 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 761 | A3189320 | Gasket, Foam |
|
- | |||||
| 851 | 67006425 | Screw (Replaces: M0239229) |
|
Immediately | $ 7.30 | ||||
| 871 | 10427716 | Shield, Evap |
|
- | |||||
| 881 | 67006425 | Screw, Sm (Replaces: M0238642) |
|
Immediately | $ 7.30 | ||||
| 901 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 921 | 10502401 | Grille, Frz Air |
|
- | |||||
| 931 | 10486104 | Tray, Drip |
|
- | |||||
| 941 | 10638601 | Duct, Return Air |
|
- | |||||
| NI | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 |
