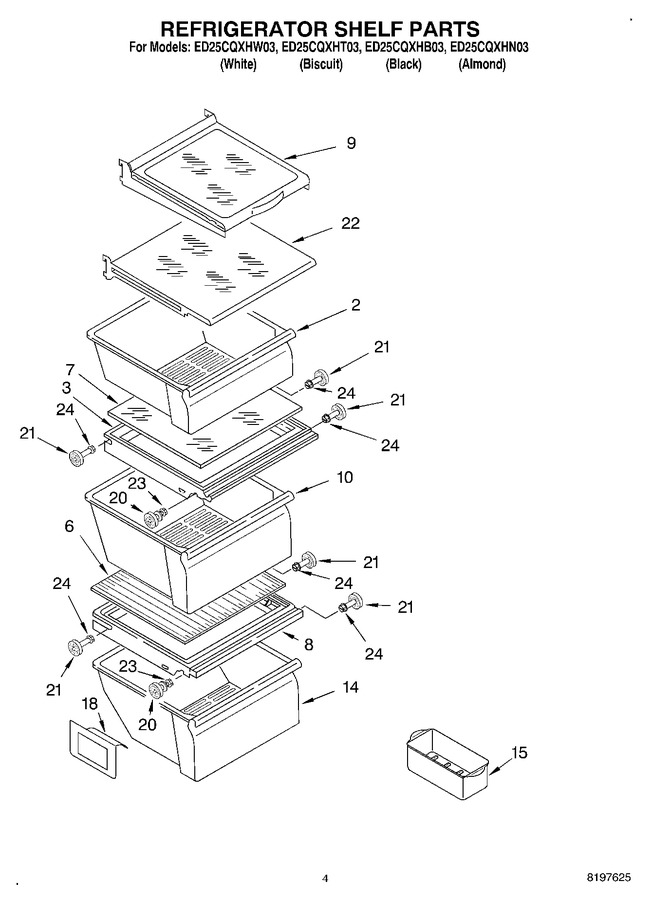

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W11497323		Snack Bin   (Replaces: 2196482)				$ 223.66
3	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 291.29
6	W10864399		Glass, Cover (2)   (Replaces: 2179259)				$ 220.98
7	W10864399		Glass, Crisper Cover   (Replaces: 2174150)				$ 220.98
8	2217039		Cover, Meat Pan		Appelez-nous	-
9	2194281		Shelf Assembly, Cantilever		Appelez-nous	-
10	WP2188661		Pan, Crisper   (Replaces: 2196481)			Immediately	$ 162.07
14	WP2188664		Meat Pan   (Replaces: 2196480)			Immediately	$ 85.30
15	W10136387A		Egg Bin   (Replaces: 2164333)				$ 18.61
18	2179350		Deflector				$ 81.80
20	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.07
21	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
22	2206347		Shelf, Cantilever Snack Bin		Appelez-nous	-
23	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.05
24	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
