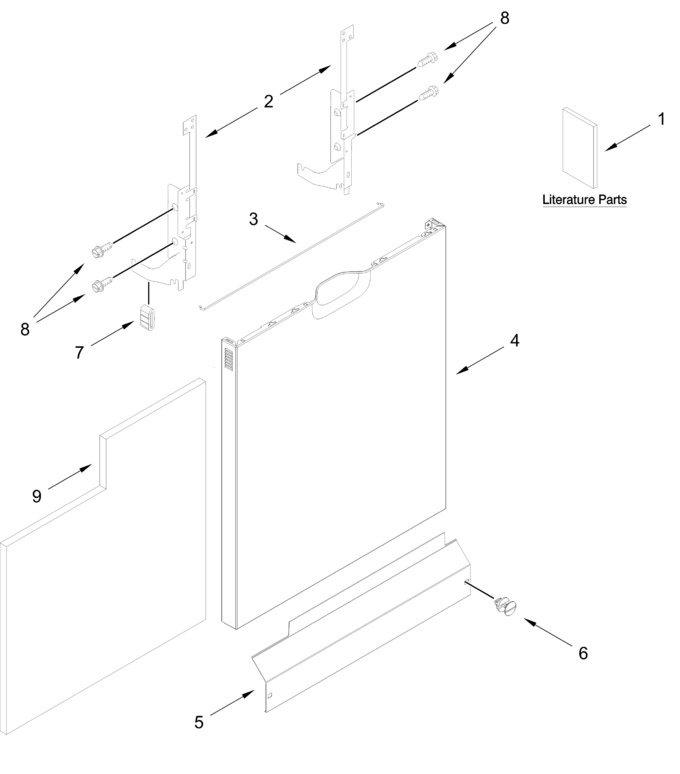

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11806566		Arm, Hinge (left)   (Replaces: W11689169)			Immediately	$ 71.77
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	W11765431		Front Panel (stainless)   (Replaces: W10629480)				$ 213.14
5	W11763736		Access Panel (black)   (Replaces: W11674252)			Immediately	$ 42.25
6	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93
8	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
9	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
	W11796927		Owners Manual		Appelez-nous	-
	W11806609		Arm, Hinge (right)   (Replaces: W11689184)		Appelez-nous	-
	W11796966		Energy Guide		Appelez-nous	-
