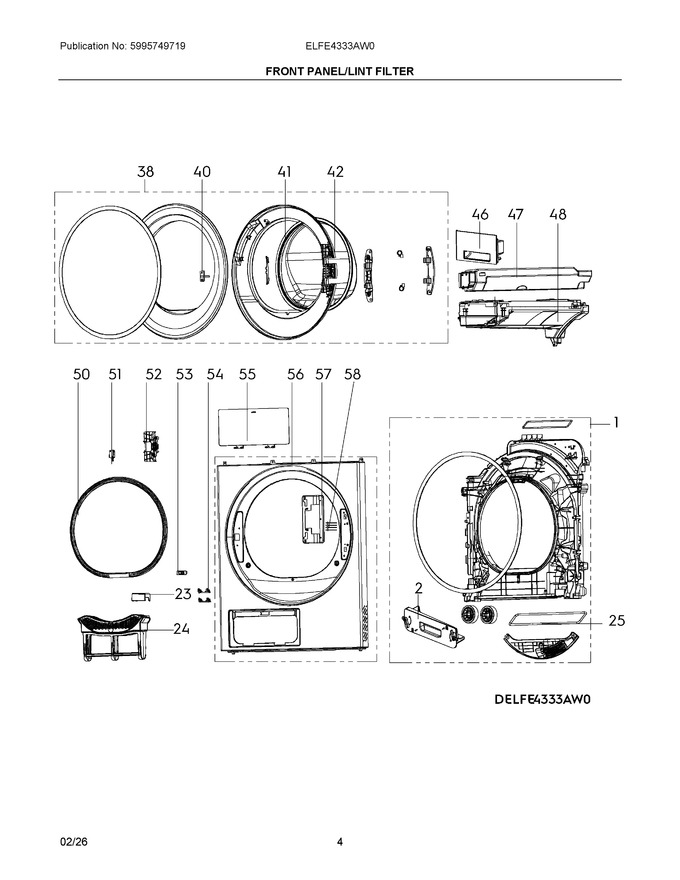

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056040159		Front Support Assembly		Appelez-nous	-
2	4056039896		Lint Filter Assembly		Appelez-nous	-
23	4056040142		Shield, Waterproof		Appelez-nous	-
24	4056040134		Air Filter Assembly		Appelez-nous	-
25	4056040167		Seal Ring		Appelez-nous	-
38	4056040316		Door Assembly		Appelez-nous	-
40	4056040324		Door Plunger		Appelez-nous	-
41	4056040332		Inner Door Frame		Appelez-nous	-
42	4056040340		Door Lens		Appelez-nous	-
46	4056040399		Dispenser, Detergent		Appelez-nous	-
47	4056040407		Drawer Assembly		Appelez-nous	-
48	4056040415		Cover, Drawer		Appelez-nous	-
50	4056040449		Door Gasket		Appelez-nous	-
51	4056040456		Cover, Switch		Appelez-nous	-
52	4056040464		Latch Assembly		Appelez-nous	-
53	4056040472		Bracket		Appelez-nous	-
54	4056040480		Bracket, Fixed		Appelez-nous	-
55	4056040498		Cover Assembly		Appelez-nous	-
56	4056040506		Front Panel Assembly		Appelez-nous	-
57	4056040514		Hinge, Door		Appelez-nous	-
58	4056040522		Rivet		Appelez-nous	-
