SELECT A DIAGRAM

Burner Box, Grate, And Grill Parts


Chassis Parts


Cooktop, Burner, And Grill Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts

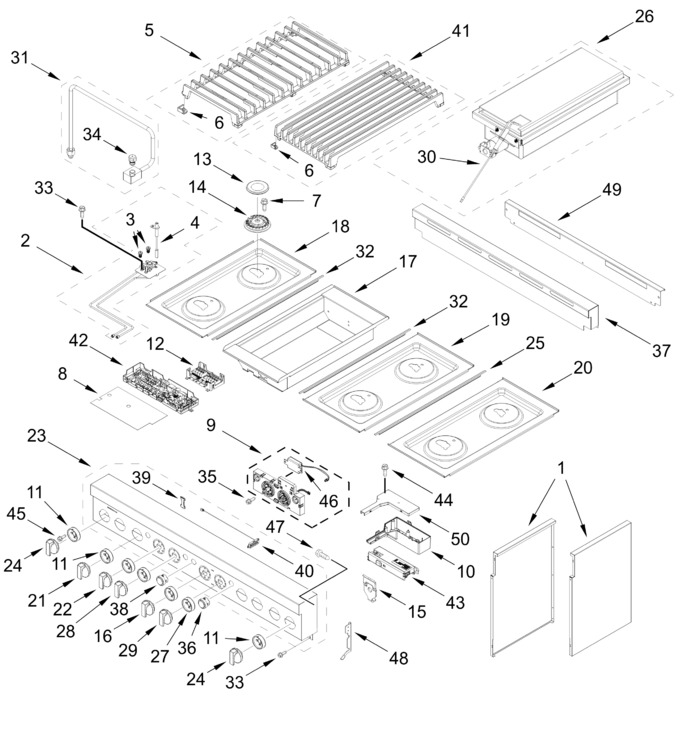

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11321067		Panel, Cabinet Side (left)   (Replaces: W11111429)				$ 439.37
2	W11319741		Orifice Holder Assembly   (Replaces: W10892807)				$ 121.66
3	W11643164		Orifice, Main (17.4k)   (Replaces: W10892422)			Immediately	$ 60.97
4	W11573760		Igniter   (Replaces: W11238757)			Immediately	$ 23.48
5	W11516449		Grate Assembly (black, Left)   (Replaces: W11291180)				$ 265.06
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 12.72
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11492275		Interface, User   (Replaces: W11436326)			Immediately	$ 573.94
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11317889		Bezel (stainless)   (Replaces: W11090284)				$ 106.87
12	W11355250		Manager, Appliance (expansion)   (Replaces: W10871065)				$ 451.62
13	W11319224		Cap, Burner (black, Set Of 6)   (Replaces: W11121392)			Immediately	$ 252.20
14	W11319683		Spreader, Flame (high)   (Replaces: W10891987)			Immediately	$ 250.69
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
16	W11397970		Knob, Oven Mode (stainless)   (Replaces: W11317854)				$ 164.32
17	W11328566		Grill Box Assembly   (Replaces: W11174429)		Appelez-nous	-
18	W11316700		Panel, Left Cooktop   (Replaces: W11038237)				$ 502.01
19	W11316701		Panel, Center Cooktop   (Replaces: W11038241)				$ 502.01
20	W11328008		Panel, Right Cooktop   (Replaces: W11038254)				$ 475.25
21	W11805839		Knob, Grill (stainless)   (Replaces: W11560137)		Appelez-nous	-
22	W11406544		Knob, Oven Mode (stainless)   (Replaces: W11325046)		Appelez-nous	-
23	W11444409		Panel, Console   (Replaces: W10878258)				$ 921.44
24	W11791681		Knob, Dual (stainless)   (Replaces: W11560135)		Appelez-nous	-
25	W10271524		Trim, T-strip (black)				$ 212.34
26	W11328568		Grill Burner Assembly   (Replaces: W11120976)				$ 848.94
27	W11317892		Bezel, Oven (stainless)   (Replaces: W11042375)				$ 110.74
28	W11406542		Knob, Oven Temperature (stainless)   (Replaces: W11325047)		Appelez-nous	-
29	W11317539		Knob, Oven Temperature (stainless)   (Replaces: W10891868)				$ 154.22
30	W11328571		Electrode, Grill   (Replaces: W11174598)		Appelez-nous	-
31	W11517686		Grill Orifice Holder Assembly   (Replaces: W11419278)		Appelez-nous	-
32	W10291193		Trim, L-strip		Appelez-nous	-
33	7101P42660		Screw		Appelez-nous	-
34	W11419282		Orifice, Grill (18k)		Appelez-nous	-
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
37	W11516014		Island Trim   (Replaces: W11476244)				$ 443.60
38	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
39	W11318856		Light Pipe Assembly   (Replaces: W10896369)				$ 109.35
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
41	W11516484		Grill Grate Assembly   (Replaces: W11291185)				$ 379.68
42	W11620696		Manager, Powermax Appliance   (Replaces: W11543349)				$ 474.72
43	W11234290		Wifi Module Assembly   (Replaces: W11110768)				$ 179.89
44	7101P62460		Screw		Appelez-nous	-
45	W11509770		Screw   (Replaces: W11328357)				$ 14.23
46	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
47	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
48	W10130760		Bracket, Moving Console (left)				$ 75.94
49	W10323252		Trim, Island Insert				$ 207.83
50	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
	W10892429		Orifice, Simmer (2.0k)				$ 99.86
	W11620697		Orifice Holder Assembly   (Replaces: W11505827)		Appelez-nous	-
	W10130759		Bracket, Moving Console (right)				$ 75.94
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	W11319746		Orifice Holder Assembly   (Replaces: W10892495)				$ 123.91
	ARI5176DC7BCD528CAA83FE8E7749EF8817		(right Center)		Appelez-nous	-
	ARIEE95D82B7825982DB8027AA1FAF6E9DB		(left Front, Right Center Front, Right Front)		Appelez-nous	-
	ARI86CC442F7E3B2AFAEE580E427DF61ED9		(all But Right Center Rear)		Appelez-nous	-
	ARI03CD409BD699D70C62A402990434B427		(for 6 Cooktop Burners)		Appelez-nous	-
	ARI1CEA8328406821DB8179A8C971BDB5B4		(left Rear, Right Rear)		Appelez-nous	-
	ARI96BA0D36FA6A631E80C7BFCE86BF12CD		(left Center)		Appelez-nous	-
	W11327980		Orifice Holder Assembly   (Replaces: W10892724)		Appelez-nous	-
	ARI6E98DE8FE4911B8A58D1CF32CA9636B7		(for 6 Cooktop Burners And Grill)		Appelez-nous	-
	W11238756		Igniter			Immediately	$ 67.96
	W11661909		Orifice, Simmer (2.6k)   (Replaces: W10892435)			Immediately	$ 74.14
	ARI1E01456C21FFBF0D8455E89259237D34		(for 30 In Oven)		Appelez-nous	-
	ARIE201EE7BE318B20F5A8E22F5F2B645F9		(for 18 In Oven)		Appelez-nous	-
	W10892440		Orifice, Main (7.2k)				$ 99.86
	W10892418		Orifice, Main (15.4k)			Immediately	$ 103.03
	W11319673		Spreader, Flame (low)   (Replaces: W10892022)			Immediately	$ 229.46
	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 450.31
	W11516462		Grate Assembly (black, Right)   (Replaces: W11291182)				$ 265.07
	W11327981		Orifice Holder Assembly   (Replaces: W10892726)		Appelez-nous	-
	W11516481		Grate Assembly (black, Center)   (Replaces: W11291184)				$ 260.06
	W11327982		Orifice Holder Assembly   (Replaces: W10892474)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI91512E59DD97B6DE955CDC6C52849EDE		(right Center Front)		Appelez-nous	-
	ARI1FACBFA861FECD9D124A08E1EC1C51C5		(for 4 Oven Knobs)		Appelez-nous	-
	ARI2DF9F568FCE4D6018097574F1022E13B		(right Center Rear)		Appelez-nous	-
