Diagram for Control Panel And Inner Door Parts
Control Panel And Inner Door Parts

Diagram for Door And Panel Parts
Door And Panel Parts

Diagram for Lower Rack Parts
Lower Rack Parts

Diagram for Pump, Washarm And Motor Parts
Pump, Washarm And Motor Parts

Diagram for Third Level Rack And Track Parts
Third Level Rack And Track Parts

Diagram for Tub And Frame Parts
Tub And Frame Parts

Diagram for Upper Rack And Track Parts
Upper Rack And Track Parts

Diagram for Upper Wash And Rinse Parts
Upper Wash And Rinse Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11693638 Arm, Hinge (left)   (Replaces: W11507818) In-Stock Immediately $ 104.90

2 W11698653 Cross Brace, Door   (Replaces: W11126789) Appelez-nous -
3 W11698515 Panel, Main Access (black)   (Replaces: W11625157) Special Order $ 383.25

4 W11102920 Light Pipe Special Order $ 68.17

5 W11729110 Screw   (Replaces: W11381263) Appelez-nous -
6 W11817385 Front Panel (stainless, Includes Badge, Barrel Nut, Front Panel Insulation, Left And Right Door Support And Light Pipe)   (Replaces: W11817230) Appelez-nous -
7 W11817314 Badge   (Replaces: W11817222) Appelez-nous -
8 W11698660 Support, Door (left)   (Replaces: W11545693) Appelez-nous -
9 W11698654 Insulation, Inner Door   (Replaces: W11564603) Special Order $ 63.12

10 W11698657 Insulation, Front Panel   (Replaces: W11641124) Special Order $ 348.89

11 W11698632 Nut, Barrel   (Replaces: W11634283) Appelez-nous -
12 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 8.18

13 W11698514 Panel, 2" Adjustable (black)   (Replaces: W11625159) In-Stock Immediately $ 151.25

14 W11698634 Screw   (Replaces: W10942031) Appelez-nous -
15 W11698633 Screw   (Replaces: W10941985) Appelez-nous -
16 W11157086 Stud, Mounting   (Replaces: W11049903) In-Stock Immediately $ 8.87

17 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

18 W11817388 Handle Assembly (stainless)   (Replaces: W11817231) Appelez-nous -
19 W10907991 Screw, Set   (Replaces: W10693137) Special Order $ 7.55

20 W11690824 Panel, 4" Adjustable (black)   (Replaces: W11625156) Special Order $ 149.34

21 WP302868 Screw   (Replaces: W10942053) In-Stock Immediately $ 8.18

W11693639 Arm, Hinge (right)   (Replaces: W11507890) In-Stock Immediately $ 104.90

W11698659 Support, Door (right)   (Replaces: W11545696) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

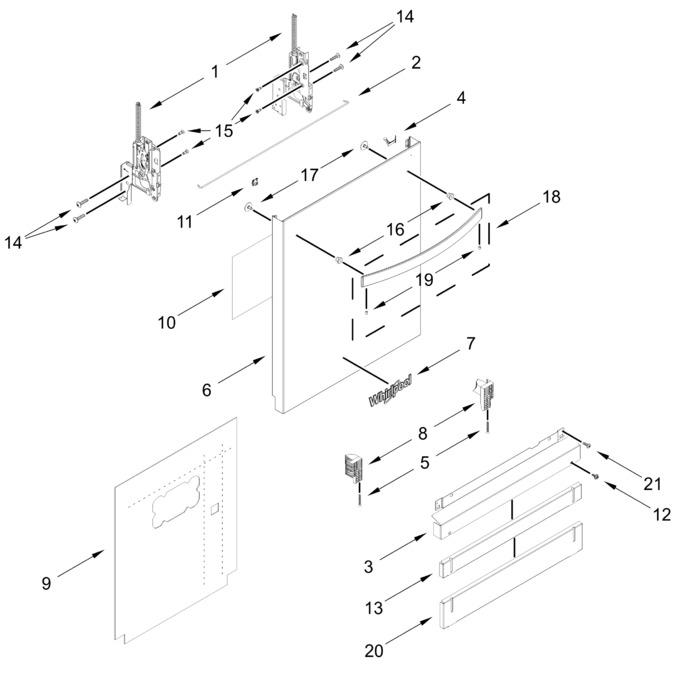

Diagram for WDTF5024SZ0
