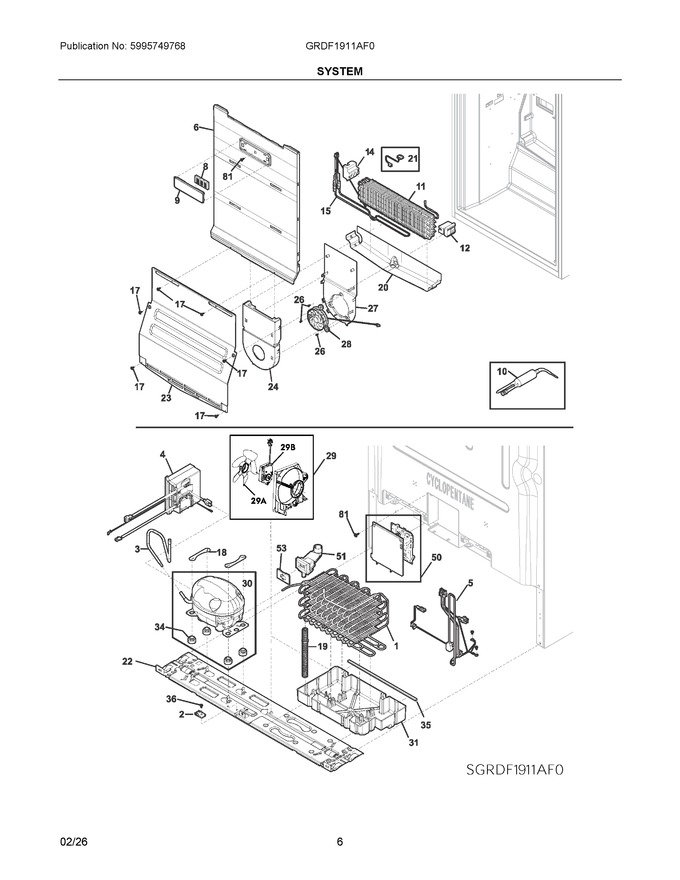

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
05 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304530007 | Condenser, Dynamic |
|
Immediately | $ 97.36 | ||||
| 2 | 5304454459 | Clamp, Cable |
|
- | |||||
| 3 | 5304519693 | Tube, Suction Jumper |
|
$ 34.55 | |||||
| 4 | 5304531506 | Inverter, Flex Drive 2.2 |
|
Immediately | $ 173.33 | ||||
| 5 | 5304532290 | Harness, Wiring, Machine Compt. |
|
Immediately | $ 68.08 | ||||
| 6 | 140294188010 | Air Tower, Assembly, Refrigerator, W/air Duct |
|
- | |||||
| 8 | FRGPAAF1 | Air Filter, Assembly (Replaces: 5304530334) |
|
Immediately | $ 33.08 | ||||
| 9 | 140294945013 | Cover Air Filter, Deodorizer Rf1 |
|
- | |||||
| 10 | A19676501 | Dryer Assembly, Filter (Replaces: 5304522277) |
|
Immediately | $ 110.81 | ||||
| 11 | 5304523830 | Evaporator, Coil |
|
Immediately | $ 159.63 | ||||
| 12 | 5304524954 | Support, Evaporator, Rh |
|
$ 9.64 | |||||
| 14 | 5304523832 | Support, Evaporator, Lh |
|
Immediately | $ 4.02 | ||||
| 15 | 5304524953 | Heater, Defrost |
|
Immediately | $ 183.95 | ||||
| 17 | 5304523738 | Screw, Hex Wash Hd, M4.2 X 16 |
|
$ 7.23 | |||||
| 18 | 5304524607 | Clamp, Compressor |
|
$ 3.21 | |||||
| 19 | 5304525042 | Tube, Drain, Extension |
|
Immediately | $ 10.95 | ||||
| 20 | 5304524755 | Trough, Drain, Evaporator |
|
$ 57.04 | |||||
| 21 | 5304524828 | Harness Assembly, Defrost Ntc |
|
Immediately | $ 40.95 | ||||
| 22 | 5304524791 | Base Assembly, Compressor, W/leg Levelers |
|
$ 130.94 | |||||
| 23 | 5304524719 | Cover Assembly, Evaporator |
|
Immediately | $ 125.95 | ||||
| 24 | 5304528048 | Cover Assembly, Evap Fan, W/air Duct |
|
Immediately | $ 79.42 | ||||
| 26 | 240569202 | Screw, 8-18 X .500 |
|
$ 2.36 | |||||
| 27 | 5304524782 | Bracket, Fan Mounting |
|
Immediately | $ 26.51 | ||||
| 28 | 5304536692 | Motor-fan, Evaporator (Replaces: 5304539146) |
|
Immediately | $ 112.80 | ||||
| 29 | 5304535399 | Condenser Fan, Assembly, 29 #, W/shroud |
|
$ 104.76 | |||||
| 30 | 5304530136 | Compressor, Assembly, Vth1111y, 230v, W/grommets |
|
Immediately | $ 230.43 | ||||
| 31 | 5304519674 | Pan, Drain |
|
$ 43.85 | |||||
| 34 | 5304530281 | Grommet, Compressor Mtg, 34 |
|
- | |||||
| 35 | 5304523724 | Seal, Drain Pan, Foam |
|
$ 5.63 | |||||
| 36 | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 16.85 | |||||
| 50 | 140163200235 | Configured Electronic Board, Erf2004, Assembly, W/housing |
|
- | |||||
| 51 | 5304530111 | Drain Jumper, Assembly, W/seal |
|
$ 21.69 | |||||
| 53 | 5304525744 | Cover, Drain Jumper |
|
$ 10.75 | |||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.37 | ||||
| 29A | 8582416395027 | Blade, Condenser Fan |
|
- | |||||
| 29B | 5304539496 | Motor, Condenser Fan |
|
$ 62.59 | |||||
| NI | 30534600 | Clip, Plastic, W/adhesive |
|
$ 4.21 | |||||
| NI | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 42.65 | ||||
| NI | 218103403 | Wire Tie |
|
- | |||||
| NI | 5304523801 | Screw, Hex Wash Hd, M4 X 10 |
|
- | |||||
| NI | 5304523302 | Clip, Wiring Harness, Plastic, W/adhesive |
|
- |
