SELECT A DIAGRAM

01 - Cover Sheet

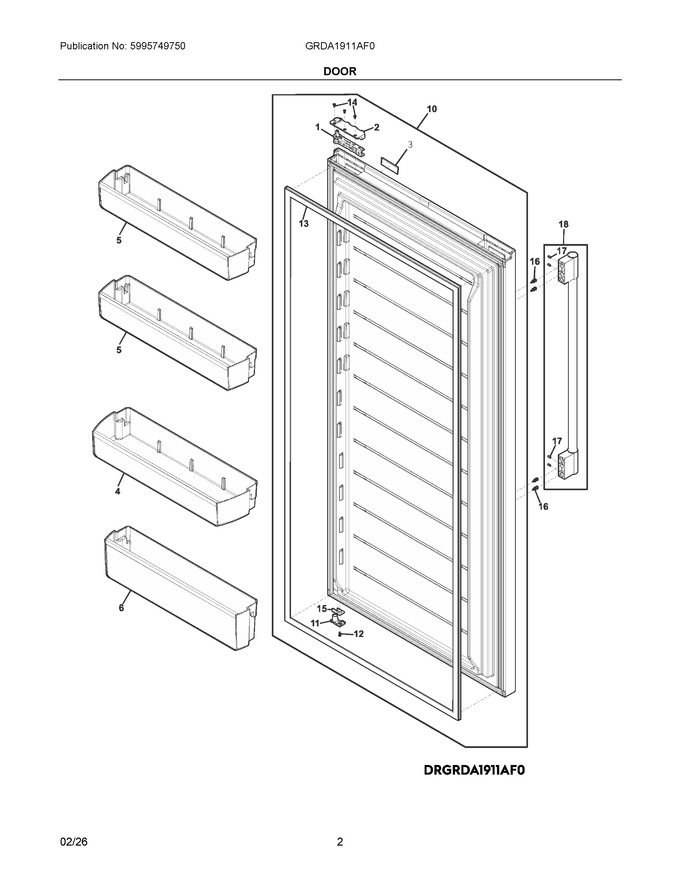

02 - Door


03 - Cabinet


04 - System


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304524643		Closer Assembly, Door, Rh Upper			Immediately	$ 106.96
2	5304524623		Cover, Door Cap, Gray, Rh, Closer Side				$ 16.07
3	5304512150		Nameplate, Chrome, Frigidaire Gallery			Immediately	$ 64.61
4	140124576087		Door Shelf, Bin, Gallon   (Replaces: 140270090032)		Appelez-nous	-
5	140124577085		Door Shelf, Bin, 2 Liters		Appelez-nous	-
6	140124578083		Door Shelf, Bin, Tall Items		Appelez-nous	-
10	140131100129		Door Assembly Complete, Refrigerator, Right Opening, Stainless		Appelez-nous	-
11	5304524745		Bearing, Door, Lower			Immediately	$ 8.84
12	241953903		Screw, Door Stop, Lower				$ 5.63
13	140190906861		Gasket, Door, Gray   (Replaces: 5304524887)			Immediately	$ 125.04
14	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 19.01
15	5304524767		Stop, Door, Lower Bearing			Immediately	$ 12.64
16	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 20.67
17	218755405		Screw-set, 10-32 X 0.375   (Replaces: 218755408)			Immediately	$ 22.84
18	140186157115		Handle Assembly, Stainless			Immediately	$ 65.51

    View Diagram in Separate Window       Print Part List
