SELECT A DIAGRAM

01 - Cover


02 - Cabinet/drum

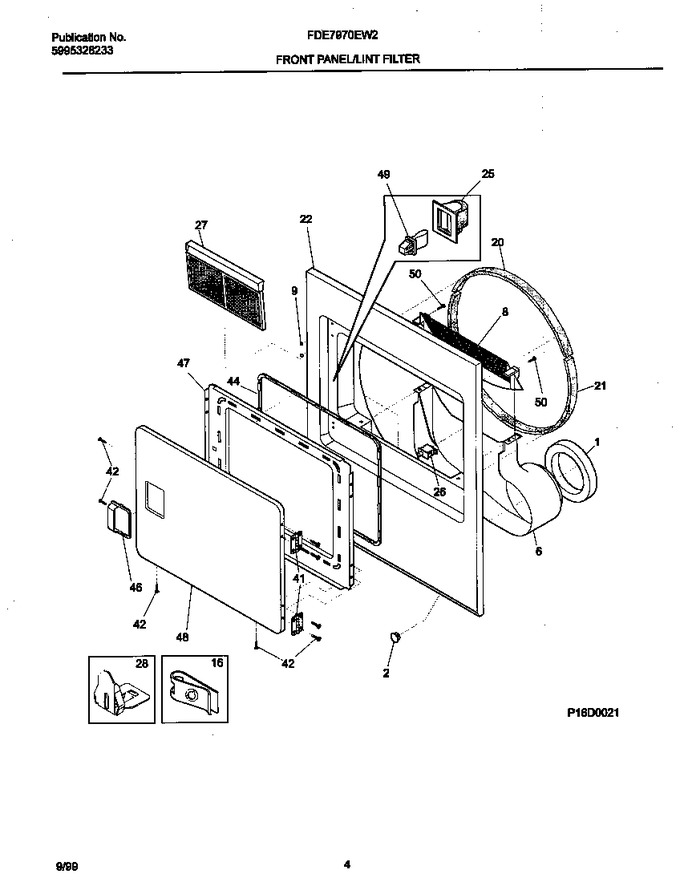

03 - Front Panel/lint Trap


04 - Control Panel


05 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134417000		Seal-air Duct   (Replaces: 131581400)			Immediately	$ 10.24
2	131397000		Plug-white   (Replaces: 131432300)				$ 15.69
6	131621900		Duct-air		Appelez-nous	-
8	131622202		Cover-lint Trap   (Replaces: 131622201)				$ 105.36
9	131633200		Plug,white				$ 17.67
16	131063700		Clip-wiring				$ 18.11
20	DE790		Glide-drum   (Replaces: 5303937139)			Immediately	$ 40.53
21	5303283286		Seal-basket Lower				$ 48.04
22	131845922		Panel-front White		Appelez-nous	-
25	131658800		Catch-door			Immediately	$ 75.98
26	134813600		Switch-door W/o Lite   (Replaces: 131843100)			Immediately	$ 47.88
27	131450300		Lint Trap			Immediately	$ 33.86
28	5303281074		Clip-guide,(2)				$ 18.27
41	134222900		Hinge-door   (Replaces: 131627500)				$ 25.20
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 16.54
44	137551901		Gasket-door   (Replaces: 131129900)			Immediately	$ 45.56
46	131644700		Handle-door, White			Immediately	$ 66.15
47	131844104		Panel-inner Door White				$ 224.12
48	131789303		Door-outer, White				$ 168.47
49	5303207102		Strike Door   (Replaces: 5303211430)			Immediately	$ 22.05
50	131303300		Screw-lock, Ph Ab, 10-16 X .50		Appelez-nous	-
*57803	5308027429		Adhesive, High Temp			Immediately	$ 66.94
*57804	131474700		Insulation				$ 33.67

    View Diagram in Separate Window       Print Part List
