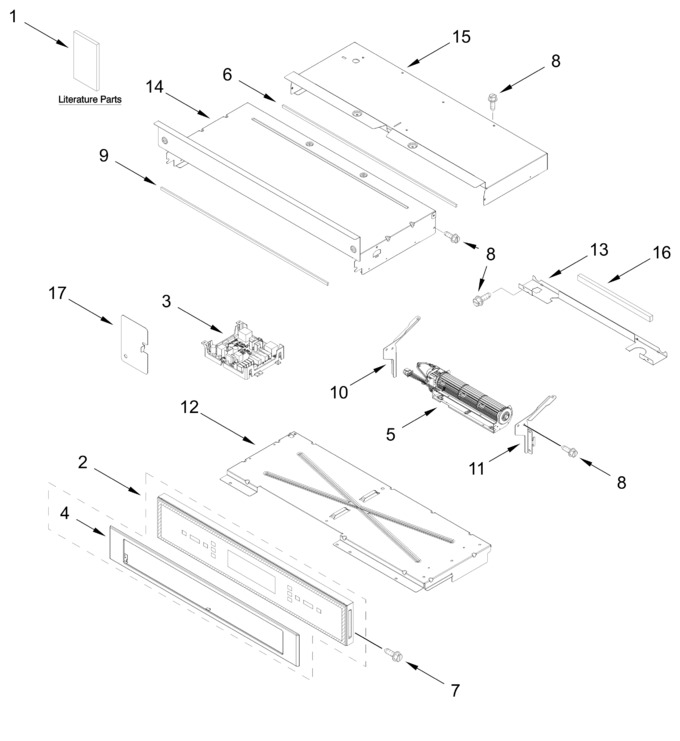

Control Panel Parts
Internal Oven Parts
Optional Parts (not Included)
Oven Door Parts
Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11820707 | Control Panel Assembly (stainless) (Replaces: W11788191) |
|
- | |||||
| 3 | W11759570 | Appliance Manager (Replaces: W11734899) |
|
$ 405.10 | |||||
| 4 | W11197499 | Skin, Control Panel (stainless) |
|
Immediately | $ 361.78 | ||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 388.25 | ||||
| 6 | W11226313 | Gasket, Rubber (652 Mm) (Replaces: W11162062) |
|
$ 24.40 | |||||
| 7 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 14.72 | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | W10728475 | Gasket, Rubber (380mm) |
|
$ 38.13 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 12 | W11758703 | Tray, Electronic (Replaces: W11645754) |
|
- | |||||
| 13 | W11754858 | Divider, Chassis Back (Replaces: W11664750) |
|
- | |||||
| 14 | W11817334 | Cover, Top Front 27 In Chassis (Replaces: W11791325) |
|
- | |||||
| 15 | W11244459 | Cover, Top Back 27 In Chassis |
|
- | |||||
| 16 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 17 | W11533682 | Cover, Wifi |
|
- | |||||
| 4450800 | Screw, Grounding |
|
$ 13.47 | ||||||
| W11692493 | Tech Sheet |
|
- | ||||||
| W10655464 | Bracket, Harness |
|
$ 40.71 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 61.80 | ||||||
| 4448664 | Clamp, Conduit |
|
$ 21.41 | ||||||
| W11759574 | Harness, Main (Replaces: W11476484) |
|
Immediately | $ 250.05 | |||||
| W11759572 | Bag, Hardware (Replaces: W11705813) |
|
- | ||||||
| W11692367 | Owner's Manual |
|
- | ||||||
| W11692385 | Quick Start Guide |
|
- | ||||||
| W11759571 | Harness, Signal (Replaces: W11476487) |
|
$ 139.03 | ||||||
| W11758708 | Harness, Comm And Eol (Replaces: W11476509) |
|
- | ||||||
| W10487999 | Clip, Harness |
|
$ 21.12 | ||||||
| W11233570 | Harness, Console |
|
Immediately | $ 234.66 |
