View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

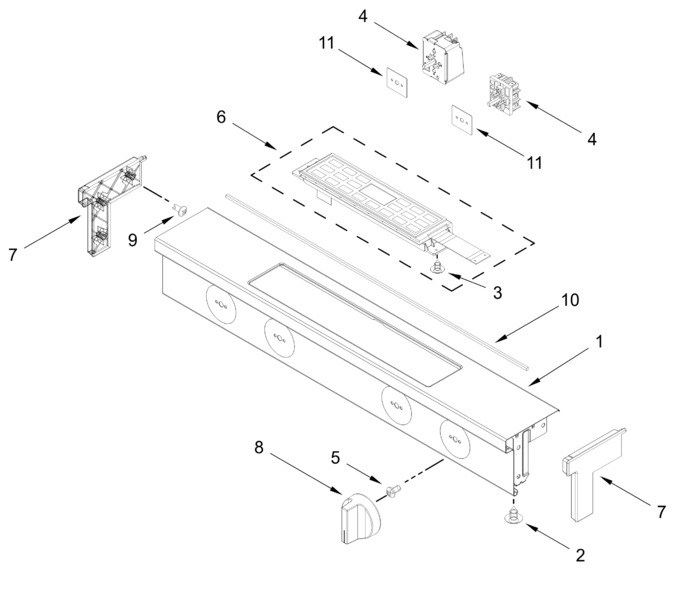

| 1 | W11784069 | Console (black) (Replaces: W11698865) |
|
$ 409.15 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 4 | W10857622 | Switch, Infinite (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 5 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 6 | W11813677 | User Interface (Replaces: W11785663) |
|
$ 465.97 | |||||
| 7 | W11770979 | Console, Endcap (black, Left) (Replaces: W11420182) |
|
$ 67.37 | |||||
| 8 | W11795507 | Knob (single, Black) (Replaces: W11730760) |
|
- | |||||
| 9 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 10 | W11747383 | Gasket Cooktop, Console (Replaces: W11401890) |
|
$ 44.56 | |||||
| 11 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- | ||||||
| W11795506 | Knob (dual, Black) (Replaces: W11730761) |
|
- | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| W10911303 | Switch, Infinite (Replaces: W10578768) |
|
Immediately | $ 104.64 | |||||
| W11770980 | Console, Endcap (black, Right) (Replaces: W11420180) |
|
- |
