Burner Box, Gas Valves And Switch Parts

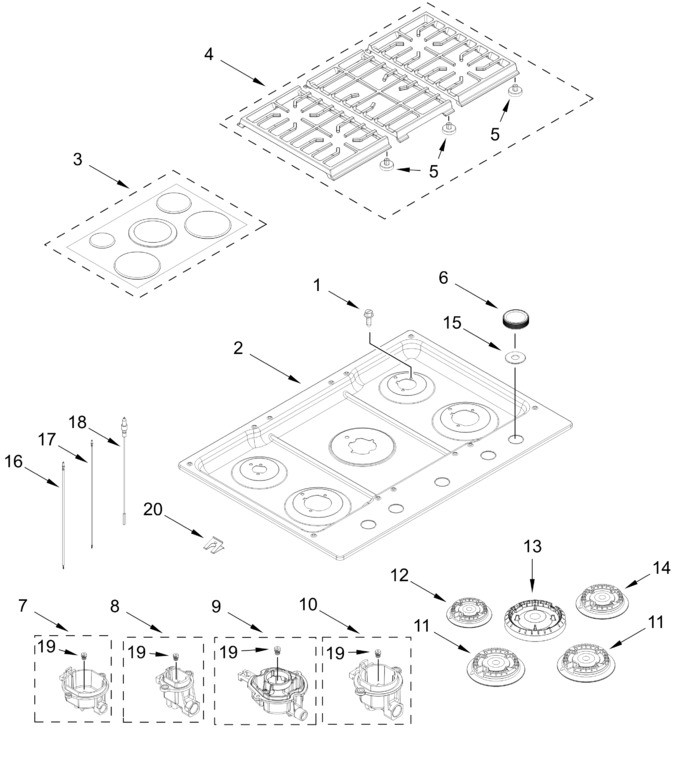

Cooktop, Burner And Grate Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11699921 | Screw (Replaces: W10758282) |
|
$ 14.77 | |||||
| 2 | W11721328 | Cooktop (stainless) |
|
- | |||||
| 3 | W11816641 | Burner Cap Kit (black) (Replaces: W11750379) |
|
Immediately | $ 162.25 | ||||
| 4 | W11816642 | Grate Kit (black, 3 Grates) (Replaces: W11744417) |
|
- | |||||
| 5 | W11755054 | Bumper, Grate (Replaces: W10703465) |
|
- | |||||
| 6 | W11816643 | Knob, Cooktop (stainless) (Replaces: W11772142) |
|
$ 52.49 | |||||
| 7 | W10674920 | Holder, Orifice (10k) |
|
$ 40.45 | |||||
| 8 | W10674918 | Holder, Orifice (6k) |
|
Immediately | $ 32.69 | ||||
| 9 | W11702578 | Holder, Orifice (18k) (Replaces: W11567144) |
|
- | |||||
| 10 | W10674919 | Holder, Orifice (7k) |
|
$ 35.09 | |||||
| 11 | WP8286815 | Head, Burner (Replaces: 8286815) |
|
Immediately | $ 74.38 | ||||
| 12 | WP8286813 | Head, Burner (Replaces: 8286813) |
|
$ 95.00 | |||||
| 13 | W11531096 | Flame Spreader (Replaces: W11352193) |
|
$ 81.92 | |||||
| 14 | WP8286814 | Head, Burner (Replaces: 8286814) |
|
$ 124.59 | |||||
| 15 | W11816644 | Bezel (Replaces: W11745847) |
|
- | |||||
| 16 | W11507531 | Wiring, Electrode (Replaces: W11439331) |
|
$ 60.82 | |||||
| 17 | W11507532 | Wiring, Electrode (Replaces: W11439332) |
|
Immediately | $ 60.89 | ||||
| 18 | W11702865 | Wiring, Electrode (440mm) (Replaces: W11640975) |
|
$ 20.27 | |||||
| 19 | ARIE067872F6F52DD2FD69D26241530A01D | Orifice (not Serviced, Must Order Orifice Holder Assembly) |
|
- | |||||
| 20 | 8286863 | Spring, Electrode |
|
$ 76.92 | |||||
| ARI61DB3313CCCA2FB354642DFE0C24AB8A | (for Tie Down Bracket) |
|
- | ||||||
| W11816795 | Harness, Switch (Replaces: W11756896) |
|
- | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARI331AC8E6A0B32951011383800D6FC3B6 | (left Front, Right Front) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 7.55 | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| 7208P02460 | Seal, Manifold Pipe Inlet |
|
- | ||||||
| W11815324 | Lp Orifice Conversion Kit (Replaces: W11745849) |
|
- | ||||||
| W11637584 | Harness, Spark Module (Replaces: W10878749) |
|
$ 33.34 | ||||||
| W10392003 | Cord, Power |
|
$ 161.67 | ||||||
| W10132200 | Relief, Strain |
|
- | ||||||
| 7101P06260 | Screw |
|
- | ||||||
| 3801F93551 | Bracket, Tie Down |
|
- | ||||||
| ARIAF8B2CF0387D82C1B76CFE2500CD62C6 | (left Rear, Right Rear) |
|
- |
