View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
05 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

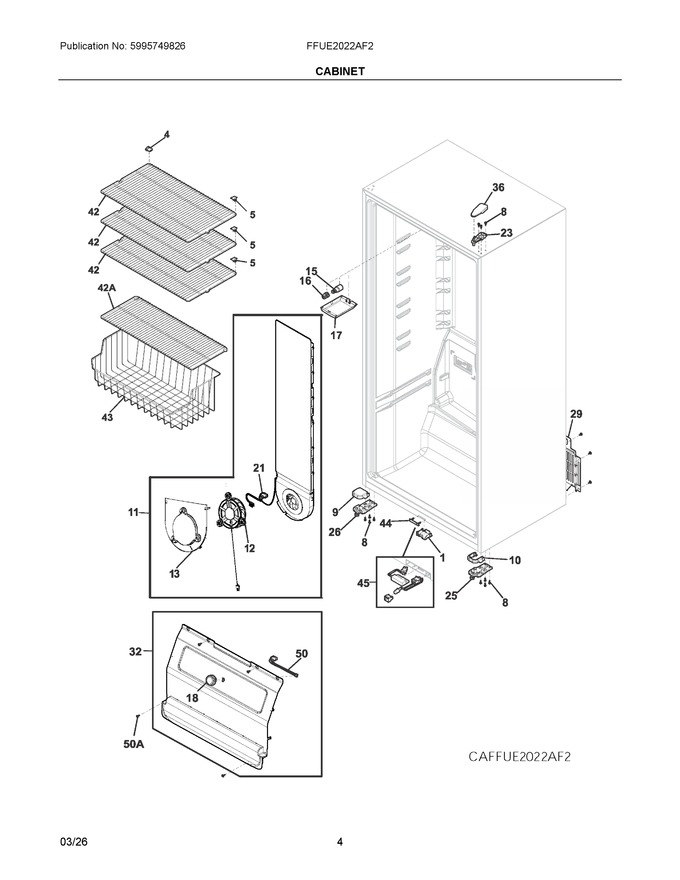

| 1 | 5304523792 | Cover, Housing, Reed Switch |
|
Immediately | $ 8.84 | ||||
| 4 | 5304522258 | Clip, Wire Shelf, Lh |
|
Immediately | $ 10.15 | ||||
| 5 | 140138510064 | Clip, Wire Shelf, Rh |
|
- | |||||
| 8 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.42 | ||||
| 9 | 5304522221 | Cover, Hinge, Gray, Lower, Non-hinged |
|
Immediately | $ 5.63 | ||||
| 10 | 5304522246 | Cover, Hinge Side, Gray, Lower |
|
Immediately | $ 4.97 | ||||
| 11 | 140123717062 | Air Tower, Assembly |
|
$ 152.70 | |||||
| 12 | 140213829033 | Fan Assembly, Motor, Evaporator |
|
Immediately | $ 55.34 | ||||
| 13 | 5304523722 | Mount-fan, Evaporator |
|
Immediately | $ 20.88 | ||||
| 15 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 44.66 | ||||
| 16 | 5304530650 | Socket, Light, Led |
|
Immediately | $ 11.12 | ||||
| 17 | 5304536791 | Lens, Light |
|
- | |||||
| 18 | 140138989029 | Knob, Temperature, Control |
|
- | |||||
| 21 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats (Replaces: 5304521790) |
|
Immediately | $ 42.84 | ||||
| 23 | 5304537471 | Hinge, Upper |
|
$ 5.85 | |||||
| 25 | 5304529045 | Hinge-bottom, Assembly, Rh, W/foot-closer |
|
$ 50.61 | |||||
| 26 | 5304523747 | Hinge-bottom, Assembly, Lh Non Hinged, W/foot |
|
$ 45.79 | |||||
| 29 | 5304525858 | Cover, Access, Machine Compt. |
|
$ 61.86 | |||||
| 32 | 140205330057 | Cover Assembly, Evaporator, Lower Cabinet |
|
- | |||||
| 36 | 5304530085 | Cover, Hinge, Gray, Upper |
|
$ 7.72 | |||||
| 42 | 140073843124 | Shelf, Sliding, Wire, Freezer |
|
$ 69.48 | |||||
| 43 | 140281739031 | Lower Basket, Wire Shelf |
|
- | |||||
| 44 | 140155478039 | Cover, Reed Switch, Lower Cabinet |
|
- | |||||
| 45 | 5304523755 | Reed Switch Harness, Assembly, W/led Light |
|
Immediately | $ 83.54 | ||||
| 50 | 5304523789 | Harness, Potentiometer |
|
Immediately | $ 24.77 | ||||
| 42A | 140121984045 | Shelf, Wire, Lower Freezer |
|
- | |||||
| 50A | 5304523738 | Screw, Hex Wash Hd, M4.2 X 16 |
|
$ 7.23 | |||||
| NI | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.37 | ||||
| NI | 5304523313 | Label, Blank, White, Hole Cover |
|
Immediately | $ 3.94 | ||||
| NI | 5304534034 | Screw, Type Ab, #10-16 |
|
- | |||||
| NIA | 5304530289 | Cover, Eps, Potentiometer |
|
- | |||||
| NIA | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.37 | |||||
| NIA | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 16.85 |
