01 - Cover Sheet

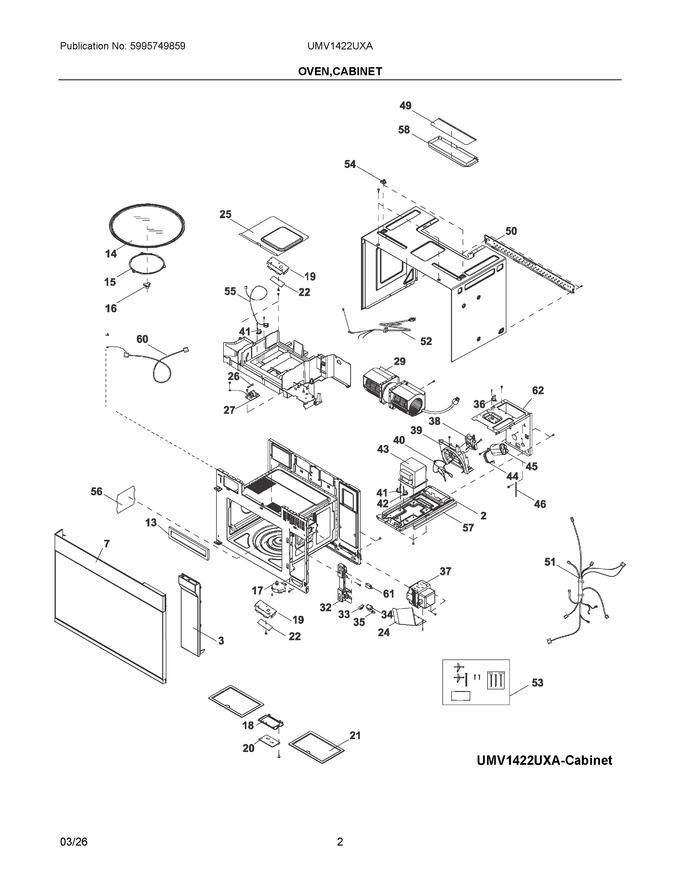

02 - Oven,cabinet
03 - Control Panel,door,misc.
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304513460 | Plate, Hv Transformer, Mounting |
|
- | |||||
| 3 | 5304531686 | Control Assembly, Complete, W/pcb |
|
$ 204.17 | |||||
| 7 | 5304518787 | Door Assembly, Complete, Stainless/black |
|
$ 539.46 | |||||
| 13 | FRPAMRAF | Filter, Charcoal, 2" X 10 (Replaces: 5304464577) |
|
Immediately | $ 42.07 | ||||
| 14 | 5304509621 | Tray, Turntable |
|
$ 171.79 | |||||
| 15 | 5304517881 | Ring, Rotating |
|
Immediately | $ 40.80 | ||||
| 16 | 5304505672 | Shaft, Turntable/motor, Coupler |
|
Immediately | $ 23.99 | ||||
| 17 | 5304509440 | Motor, Turntable |
|
Immediately | $ 131.25 | ||||
| 18 | 5304509441 | Frame, Lens Holder |
|
- | |||||
| 19 | 5304509442 | Cover, Lamp |
|
$ 65.66 | |||||
| 20 | 5304509443 | Lens, Cooktop Lamp, Glass |
|
- | |||||
| 21 | 5304517871 | Filter, Grease |
|
Immediately | $ 29.90 | ||||
| 22 | 5304517872 | Lamp, Led |
|
Immediately | $ 49.16 | ||||
| 24 | 5304513477 | Guide, Air, Magnetron |
|
$ 23.94 | |||||
| 25 | 5304513485 | Cover, Cavity Lamp |
|
- | |||||
| 26 | 5304509451 | Fuse |
|
Immediately | $ 14.45 | ||||
| 27 | 5304525109 | Filter, Noise, Electronic (Replaces: 5304512523) |
|
$ 95.55 | |||||
| 29 | 5304509624 | Motor, Vent |
|
$ 472.58 | |||||
| 32 | 5304509457 | Latch Hook |
|
Immediately | $ 48.65 | ||||
| 33 | 5304509458 | Lever, Switch |
|
Immediately | $ 11.30 | ||||
| 34 | 5304512529 | Switch, Monitor |
|
Immediately | $ 42.18 | ||||
| 35 | 5304515182 | Switch, Interlock, Secondary |
|
Immediately | $ 38.71 | ||||
| 36 | 5304509469 | Thermostat, 160/95 *v |
|
Immediately | $ 24.20 | ||||
| 37 | 5304509470 | Magnetron, High Voltage |
|
Immediately | $ 484.63 | ||||
| 38 | 5304513476 | Motor, Fan |
|
$ 211.47 | |||||
| 39 | 5304513475 | Guide, Fan |
|
- | |||||
| 40 | 5304517877 | Blade, Fan |
|
$ 6.62 | |||||
| 41 | 5304509474 | Thermostat, Cutout, Transformer |
|
Immediately | $ 23.30 | ||||
| 42 | 5304509475 | Thermostat, Cutout, Vent Motor |
|
Immediately | $ 21.69 | ||||
| 43 | 5304509476 | Transformer, High Voltage |
|
$ 489.29 | |||||
| 44 | 5304513482 | Holder, Hv Capacitor |
|
- | |||||
| 45 | 5304509478 | Capacitor, High Voltage |
|
Immediately | $ 170.93 | ||||
| 46 | 5304509479 | Diode, High Voltage |
|
$ 31.44 | |||||
| 49 | 5304509486 | Damper, Door, Exhaust Adapter |
|
Immediately | $ 30.81 | ||||
| 50 | 5304517880 | Plate, Mounting Brackt |
|
Immediately | $ 45.31 | ||||
| 51 | 5304518791 | Harness, Wiring, Main |
|
$ 86.63 | |||||
| 52 | 5304512501 | Power Cord, Electric |
|
$ 118.08 | |||||
| 53 | 5304513469 | Mounting Kit |
|
Immediately | $ 69.31 | ||||
| 54 | 5304509436 | Mounting Nut Kit |
|
Immediately | $ 16.34 | ||||
| 55 | 5304509652 | Sensor, Humidity |
|
$ 339.40 | |||||
| 56 | 5304509435 | Cover, Waveguide |
|
Immediately | $ 15.27 | ||||
| 57 | 5304509482 | Cushion, Foam Pad, Transformer |
|
- | |||||
| 58 | 5304509485 | Adapter, Exhaust, Damper Frame |
|
Immediately | $ 28.13 | ||||
| 60 | 5304504073 | Wire, Connector, Pc Board |
|
$ 145.53 | |||||
| 61 | 5304509460 | Microswitch |
|
Immediately | $ 50.30 | ||||
| 62 | 5304513479 | Duct, Air Guide, Back |
|
- |
