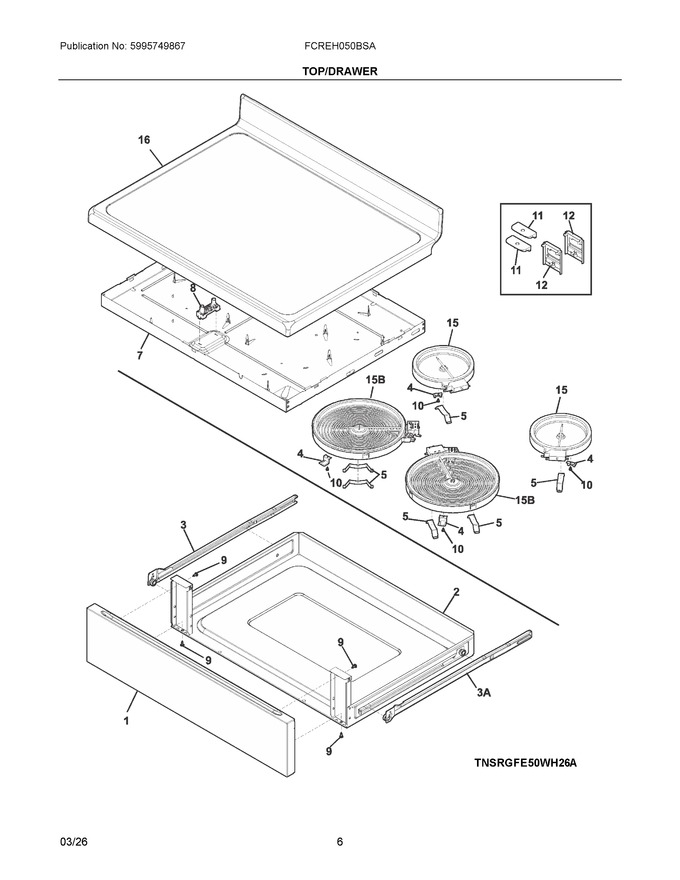

04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526300		Panel, Drawer, Stainless, Outer				$ 114.82
2	5304526448		Drawer Assembly, Utility, W/inner Glides			Immediately	$ 172.06
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 23.71
4	387683300		Bracket, Surface Element			Immediately	$ 14.91
5	5304526627		Spring, Element Support			Immediately	$ 9.10
7	5304533428		Burner Box, Smoothtop		Appelez-nous	-
8	5304538115		Indicator Light 250v Ul				$ 14.81
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
10	5304533456		Screw, T15 Self Tap, 3.5 X 8, Element Bracket				$ 3.89
11	5304537475		Clip-cooktop Alignment		Appelez-nous	-
12	5304534653		Clip, Support, Burner Box				$ 10.79
15	140283003014		Element, Radiant, 6", 1200w				$ 59.14
16	140166975106		Smoothtop, Assembly, Stainless		Appelez-nous	-
15B	140249706031		Element Top, Radiant, 9/6", 3000w			Immediately	$ 95.55
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 23.71
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	140215697040		Wiring Harness, Surface Element		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NI	316089500		Screw, 10-16 X .486				$ 14.96
