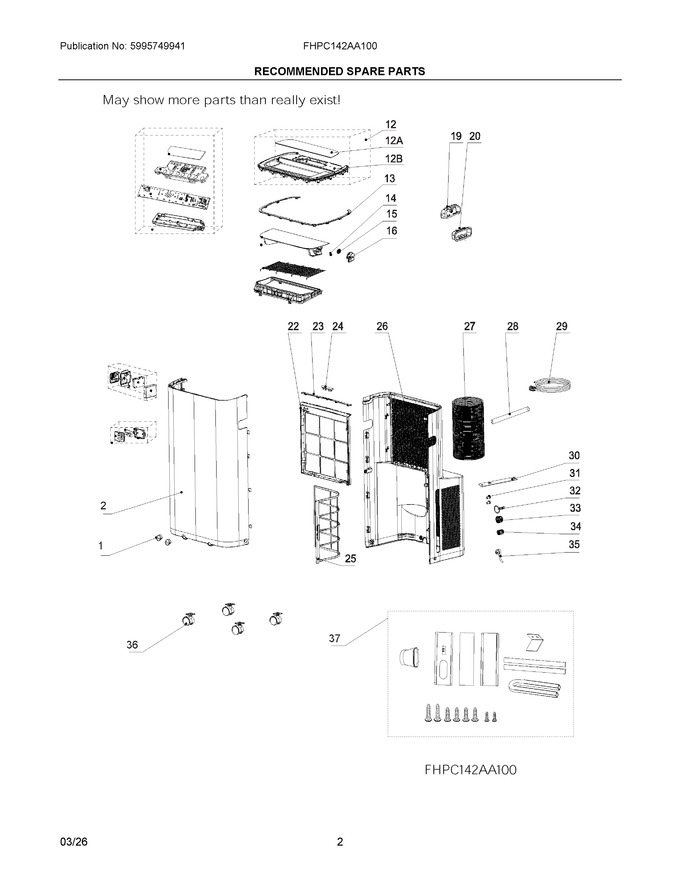

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056053251		Plug, Hole Cover		Appelez-nous	-
2	5304518096		Sleeve, Axle, (2)		Appelez-nous	-
12	4056068085		Top Cover, Assembly		Appelez-nous	-
13	4056053418		Ring, Decoration		Appelez-nous	-
14	4056053269		Housing, Front Cover		Appelez-nous	-
15	5304518109		Gear, Step Motor		Appelez-nous	-
16	5304518110		Motor, Step		Appelez-nous	-
19	4056053517		Handle Left		Appelez-nous	-
20	4056053525		Handle Right		Appelez-nous	-
22	4056067095		Air Filter, Assembly, Upper		Appelez-nous	-
23	4056068119		Strip Decoration, With Pull Tab		Appelez-nous	-
24	4056067111		Handle, Air Filter		Appelez-nous	-
25	4056067129		Air Filter, Assembly, Lower		Appelez-nous	-
26	4056053590		Housing Rear		Appelez-nous	-
27	5304518156		Hose, Exhaust				$ 36.92
28	5304518170		Hose, Drain				$ 11.68
29	5304531455		Hose Drain, Assembly		Appelez-nous	-
30	4056053608		Cable Fixing, Tie		Appelez-nous	-
31	5304518166		Stopper, Rubber		Appelez-nous	-
32	5304518124		Rope, Drain Cover		Appelez-nous	-
33	5304518123		Cover, Drain		Appelez-nous	-
34	5304518167		Cover, Stopper		Appelez-nous	-
35	4056068127		Power Cord, Cable		Appelez-nous	-
36	5304518169		Castor, (4)				$ 19.52
37	4056068135		Kit Window		Appelez-nous	-
12A	4056068093		Display Panel, Sticker		Appelez-nous	-
12B	4056068101		Top Cover, Plate		Appelez-nous	-
