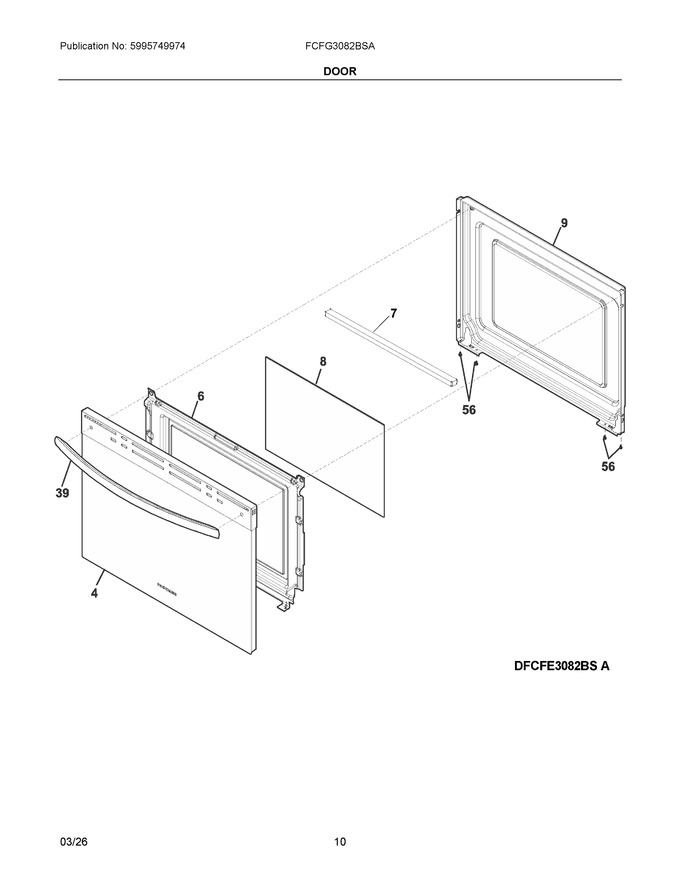

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5304534354 | Door Assembly, Outer, Glass, Stainless, W/cap-badge |
|
Immediately | $ 149.93 | ||||
| 6 | 5304526283 | Shield, Wool |
|
Immediately | $ 120.86 | ||||
| 7 | 140299178057 | Insulation, Door, Top |
|
- | |||||
| 8 | 140163079118 | Glass, Door, Inner |
|
$ 59.41 | |||||
| 9 | 5304533466 | Liner, Oven Door, Midnight Black |
|
Immediately | $ 130.38 | ||||
| 39 | 140067504096 | Handle, Door, Stainless |
|
$ 53.48 | |||||
| 56 | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| NI | 5304526532 | Screw, M4.2 X 9.5, Black |
|
$ 3.37 | |||||
| NI | 140229794023 | Wiring Harness, Door Switch |
|
- | |||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.95 |
