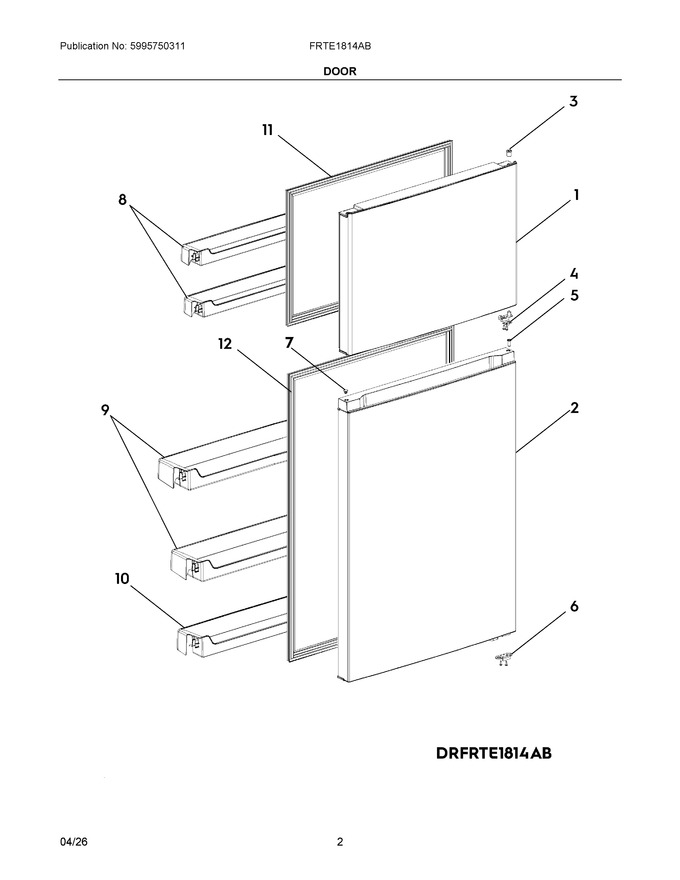

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056044730 | Door Assembly Complete, Freezer, Black |
|
- | |||||
| 2 | 4056044748 | Door Assembly Complete, Refrigerator, Black |
|
- | |||||
| 3 | 4056044342 | Shaft Sleeve, Pin, Freezer Door |
|
- | |||||
| 4 | 5304523512 | Closer, Door, Middle Hinge |
|
Immediately | $ 8.34 | ||||
| 5 | 4056044359 | Shaft Sleeve, Pin, Fridge Door |
|
- | |||||
| 6 | 4056044367 | Door Closer, Refrigerator, Door |
|
- | |||||
| 7 | 4056044706 | Plug, Refrigerator, Door |
|
- | |||||
| 8 | 4056044755 | Bin Door, Freezer |
|
- | |||||
| 9 | 4056044763 | Bin Door, Upper, Fridge Door |
|
- | |||||
| 10 | 4056044771 | Bin Door, Lower, Fridge Door |
|
- | |||||
| 11 | 4056044672 | Gasket Assembly, Freezer Door |
|
- | |||||
| 12 | 4056044698 | Gasket Assembly, Refrigerator, Door |
|
- |
