01 - Cover Sheet

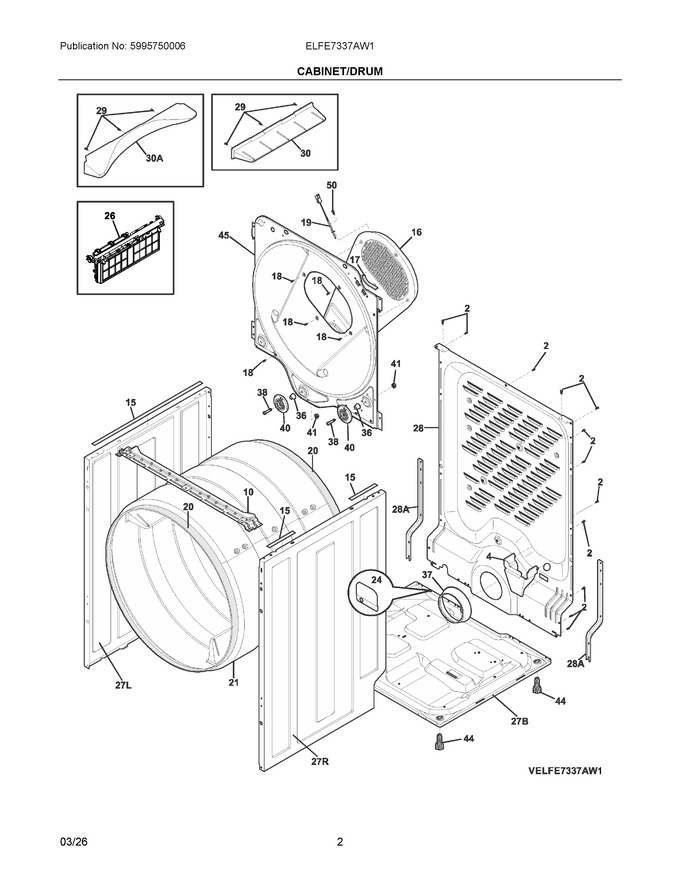

02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
10	5304513567		Bracket, Front Panel		Appelez-nous	-
15	137031800		Cushion, Vibration, Top Panel			Immediately	$ 9.45
16	5304513571		Duct Assembly, Heat, Rear				$ 155.03
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 15.75
19	5304520302		Thermistor, Inlet			Immediately	$ 62.17
20	5304499489		Seal, Felt, Purple Stitches, Drum			Immediately	$ 62.99
24	137537100		Cover, Back Sheet, Cutout		Appelez-nous	-
28	137560400		Panel, Backsheet, Rear Vented		Appelez-nous	-
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 15.75
30	137610610		Vane, Straight, White			Immediately	$ 72.45
36	5304523154		Spacer, Drum Roller			Immediately	$ 29.73
37	137553500		Cover, Exhaust Tube				$ 52.95
38	5304529714		Shaft, Drum Roller, Shoulder Bolt			Immediately	$ 33.80
40	5304523152		Roller Wheel, Assembly, W/bearing			Immediately	$ 33.68
41	5304523153		Nut, Lock			Immediately	$ 12.16
44	134158001		Leveling Leg, Screw			Immediately	$ 27.80
45	5304521410		Bulkhead, Panel, White, Rear				$ 217.69
50	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.73
21A	137610700		Drum, Dryer Assy, 38", White			Immediately	$ 426.04
26C	140212880110		Board Assembly, Main Control, W/housing				$ 152.08
27B	134690210		Base, Dryer, Washed		Appelez-nous	-
27L	5304536124		Panel, Dryer Side, White, Lh		Appelez-nous	-
27R	5304536119		Panel, Dryer Side, White, Rh		Appelez-nous	-
28A	137029801		Bracket, Reinforcement, Backsheet				$ 36.95
30A	5304531882		Vane, Mixing, Smooth   (Replaces: 137610510)				$ 22.49
NI	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 29.53
NI	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
NI	5304529787		Brace, Side Panel		Appelez-nous	-
NIA	131205500		Screw, 1/4-14 X 0.625				$ 14.96
NIA	5308027429		Adhesive, High Temp			Immediately	$ 66.94
NIA	5304521493		Screw, Pn Hd, #10-16 X .375, 7.85mm		Appelez-nous	-
NIA	137150200		Terminal Block Kit, Main				$ 35.44
NIA	131202300		Screw, 10-16ab X 0.625			Immediately	$ 14.96
NIB	5304529731		Harness, Wiring, Main				$ 201.02
NIB	134154100		Screw, Hex Washer Head, 10-32 X 0.375, Ground				$ 14.96
