SELECT A DIAGRAM

01 - Cover Sheet

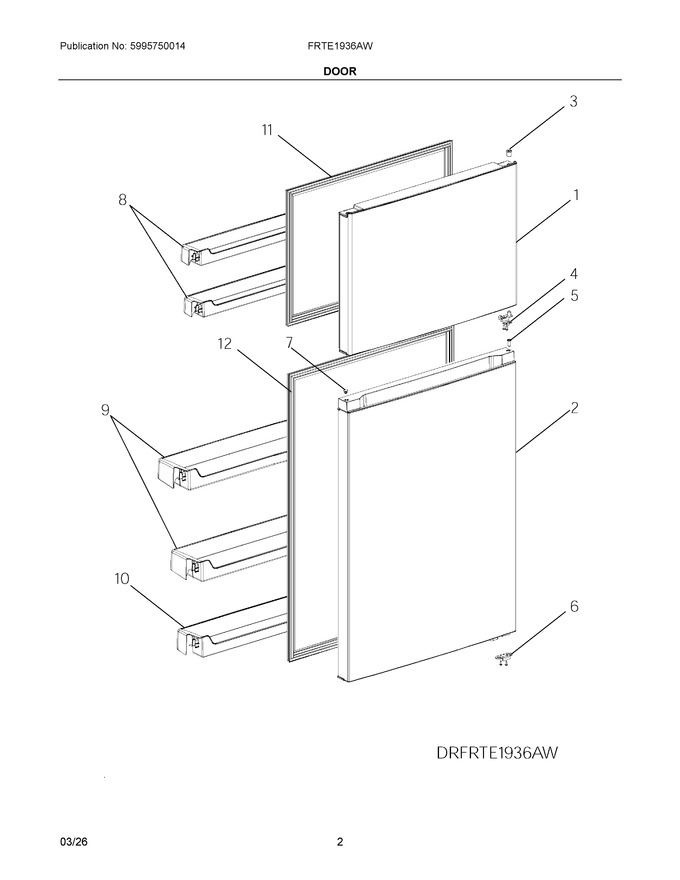

02 - Door


03 - Cabinet


04 - Shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056044300		Door Assembly Complete, Freezer, White			Immediately	$ 169.16
2	4056044326		Door Assembly Complete, Refrigerator, White				$ 229.20
3	4056044342		Shaft Sleeve, Pin, Freezer Door		Appelez-nous	-
4	5304523512		Closer, Door, Middle Hinge			Immediately	$ 8.34
5	4056044359		Shaft Sleeve, Pin, Fridge Door		Appelez-nous	-
6	4056044367		Door Closer, Refrigerator, Door		Appelez-nous	-
7	4056044375		Plug, Refrigerator, Door		Appelez-nous	-
8	4056044383		Bin Door, Freezer		Appelez-nous	-
9	4056044391		Bin Door, Refrigerator, Upper				$ 34.22
10	4056043856		Bin Door, Refrigerator, Lower				$ 25.07
11	4056044318		Gasket Assembly, Freezer Door		Appelez-nous	-
12	4056044334		Gasket Assembly, Refrigerator, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
