SELECT A DIAGRAM

Accessory Parts


Container Parts


Frame Parts


Motor And Drive Parts


Panel And Control Parts


Powerscrew And Ram Parts

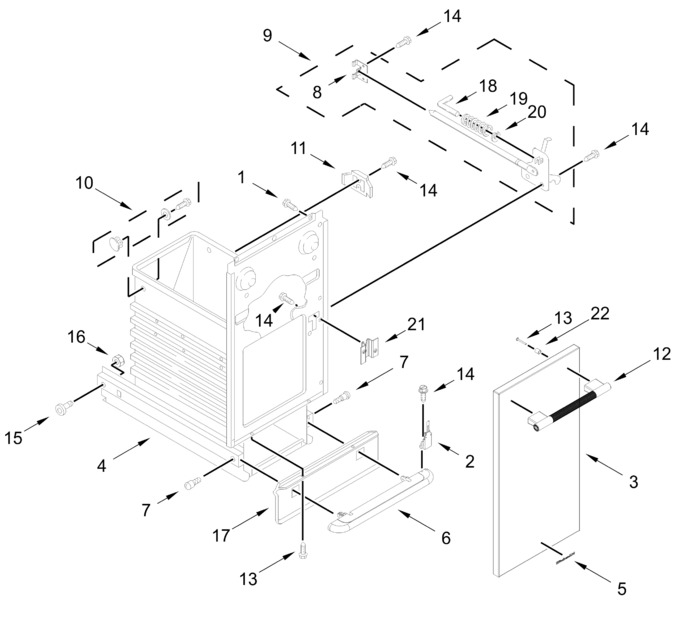

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10139210		Screw   (Replaces: 4152204)				$ 8.03
2	WPW10451270		Actuator Switch   (Replaces: W10242549)				$ 103.67
3	W11821124		Panel, Container Front (juniper, Includes Badge)   (Replaces: W11757158)		Appelez-nous	-
4	WPW10451276		Container Assembly   (Replaces: 9870934)				$ 510.52
5	W11759445		Badge   (Replaces: W11688412)			Immediately	$ 50.32
6	W11636605		Black   (Replaces: W11304291)				$ 65.88
7	WP780263		Screw   (Replaces: 780263)				$ 8.34
8	W11819452		Guide, Rear Latch   (Replaces: W11652366)		Appelez-nous	-
9	675379		Latch Assembly   (Replaces: 9870066)				$ 182.53
10	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-
11	9871125		Actuator, Safety Switch				$ 29.37
12	W11821126		Handle Assembly (juniper)   (Replaces: W11757161)		Appelez-nous	-
13	W10661526		Screw				$ 14.05
14	WP489478		Screw   (Replaces: W10001260)				$ 8.18
15	WP9871602		Bearing, Container Roller   (Replaces: 9871602)				$ 13.87
16	WP776356		Locknut   (Replaces: 776356)				$ 8.53
17	W11696574		Guard, Toe (black)   (Replaces: W10242557)				$ 142.26
18	W11705836		Pin, Latch   (Replaces: 776654)		Appelez-nous	-
19	775736		Spring, Latch				$ 93.80
20	W11679168		Ring, E   (Replaces: 775735)		Appelez-nous	-
21	W11821101		Plate, Latch   (Replaces: W11652361)		Appelez-nous	-
22	WP9871563		Spacer, Handle   (Replaces: 9871563)				$ 11.25

    View Diagram in Separate Window       Print Part List
