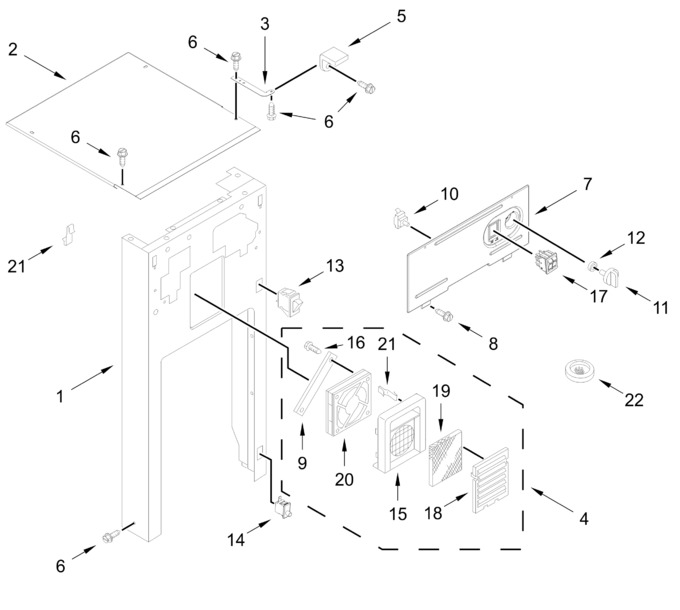

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10242567		Panel, Front Frame (black)				$ 350.15
2	W11729261		Cover, Top   (Replaces: W11652356)		Appelez-nous	-
3	W11729437		Bracket, Retainer   (Replaces: W11652737)			Immediately	$ 24.48
4	9871893		Fan Mount Assembly				$ 348.34
5	WP780239		Bracket, Mounting   (Replaces: 780239)				$ 28.53
6	WP489478		Screw   (Replaces: W10001260)				$ 8.18
7	W11447162		Escutcheon, Control   (Replaces: W10242572)			Immediately	$ 100.78
8	246131		Screw		Appelez-nous	-
9	4152703		Strap, Fan				$ 75.32
10	WP9871971		Switch, Rotary Start-run   (Replaces: 9871971)			Immediately	$ 186.64
11	WP9871920		Knob, Rotary Switch (black)   (Replaces: 9871920)				$ 69.55
12	WP777383		Nut   (Replaces: 777383)				$ 12.83
13	9871829		Switch, Drawer Tilt (black)				$ 93.95
14	WPW10242556		Switch, Pushbutton   (Replaces: W10242556)				$ 158.45
15	9871893		Compartment, Air Freshener   (Replaces: 4151442)				$ 348.34
16	WP3351614		Screw   (Replaces: 780034)			Immediately	$ 7.30
17	W11032731		Switch Assembly (black)   (Replaces: 9871973)			Immediately	$ 89.22
18	WP9871099		Cover, Air Freshener (black)   (Replaces: 9871099)				$ 71.65
19	WP4151750		Filter Element   (Replaces: 4151750)				$ 18.60
20	9871893		Fan, Filter   (Replaces: 9871051)				$ 348.34
21	4151897		Clip				$ 7.40
22	W10540355		Deodorizer Block (green Apple)				$ 15.89

    View Diagram in Separate Window       Print Part List
