SELECT A DIAGRAM

Control Panel Parts


Internal Oven Parts


Lower Oven Door Parts


Optional Parts (not Included)


Oven Parts


Upper Oven Door Parts

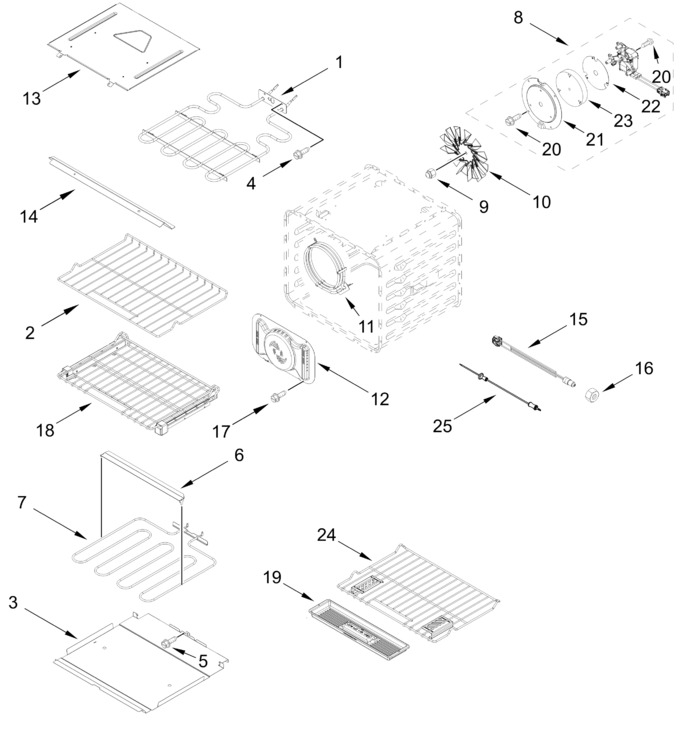

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11818398		Element, Broil   (Replaces: W11488059)		Appelez-nous	-
2	WPW10554526		Rack, Oven   (Replaces: W10554526)			Immediately	$ 182.96
3	W10318198		Tray, Hidden Bake				$ 195.83
4	7101P43460		Screw		Appelez-nous	-
5	7101P42660		Screw		Appelez-nous	-
6	W10282957		Crossbar, Hidden Bake Tray				$ 47.47
7	W11545804		Element, Bake   (Replaces: W11292248)			Immediately	$ 102.53
8	W11617227		Convect Motor Assembly   (Replaces: W11398058)			Immediately	$ 159.60
9	W11548755		Nut, Acorn (left Hand Thread)   (Replaces: W11433702)				$ 15.38
10	W11548753		Blade, Fan   (Replaces: W11425715)			Immediately	$ 157.63
11	W11678579		Element, Convection   (Replaces: W10546519)			Immediately	$ 121.00
12	W11234763		Baffle, Bow Tie   (Replaces: W10918895)				$ 231.30
13	W11818403		Reflector, Broil   (Replaces: W11695367)		Appelez-nous	-
14	W10588737		Shield, Broil Front				$ 105.40
15	W11781376		Jack, Meat Probe   (Replaces: W11734531)		Appelez-nous	-
16	WP9755546		Nut, Hidden   (Replaces: 9755546)				$ 7.30
17	W10739592		Screw		Appelez-nous	-
18	W11718046		Rack, Sliding   (Replaces: W10554531)			Immediately	$ 173.45
19	W11781378		Reservoir, Steam Rack   (Replaces: W11745725)				$ 187.73
20	W10850807		Screw   (Replaces: W10720084)				$ 7.77
21	W11617229		Cover, Convect Plate   (Replaces: W11398057)		Appelez-nous	-
22	W11602629		Plate, Convect Motor   (Replaces: W11251715)		Appelez-nous	-
23	W11706806		Insulation, Convect Motor   (Replaces: W11251716)		Appelez-nous	-
24	W11781377		Rack, Oven Steam   (Replaces: W11740191)				$ 104.60
25	W11765965		Probe, Temperature   (Replaces: W11734537)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
