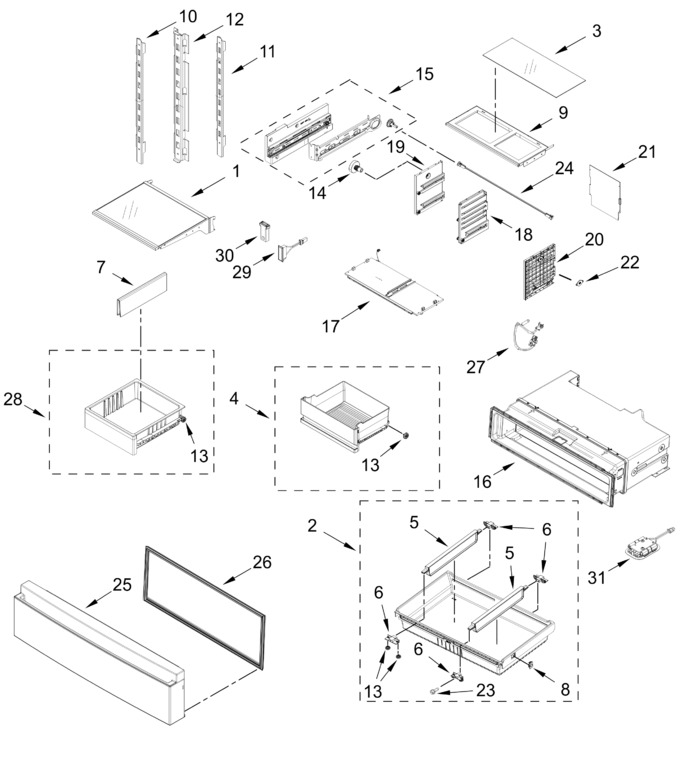

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11750332		Stationary Shelf Assembly   (Replaces: W11579004)				$ 191.02
2	W11821492		Drawer Assembly, Pantry   (Replaces: W11579341)		Appelez-nous	-
3	W11787400		Glass Crisper Cover   (Replaces: W11664743)		Appelez-nous	-
4	W11787402		Crisper Assembly   (Replaces: W11692920)				$ 181.06
5	W11821493		Divider, Drawer (pantry)   (Replaces: W11579736)		Appelez-nous	-
6	W11821546		Slider And Roller Assembly (pantry)   (Replaces: W11604800)		Appelez-nous	-
7	W11787521		Pan Divider (storage)   (Replaces: W11606499)		Appelez-nous	-
8	W11821547		Magnet Enclosure Assembly (white)   (Replaces: W11604803)		Appelez-nous	-
9	W11807676		Crisper Cover Frame   (Replaces: W11606487)		Appelez-nous	-
10	W11821490		Shelf Ladder (white, Right Hand)   (Replaces: W11611220)		Appelez-nous	-
11	W11821489		Shelf Ladder (white, Left Hand)   (Replaces: W11611219)		Appelez-nous	-
12	W11821487		Shelf Ladder (white, Center)   (Replaces: W11611187)		Appelez-nous	-
13	W11748380		Crisper Roller Assembly   (Replaces: W11606482)		Appelez-nous	-
14	W11788021		Side Support Knob   (Replaces: W11607351)		Appelez-nous	-
15	W11830075		Pantry Adpater Assembly (left Hand)   (Replaces: W11579321)		Appelez-nous	-
16	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
17	W11821483		Crisper Base Assembly   (Replaces: W11606475)		Appelez-nous	-
18	W11798523		Center Support Assembly   (Replaces: W11606478)		Appelez-nous	-
19	W11798524		Crisper Adapter (left Hand)   (Replaces: W11606483)		Appelez-nous	-
20	W11798525		Crisper Adapter (right Hand)   (Replaces: W11606485)		Appelez-nous	-
21	W11798526		Falls Wall   (Replaces: W11606492)		Appelez-nous	-
22	W10840918		Side Support Flange				$ 93.47
23	W10847999		Screw   (Replaces: W10804977)				$ 13.47
24	W11821548		Shaft Assembly (pantry)   (Replaces: W11604593)		Appelez-nous	-
25	W11679936		Pantry Door Assembly (stainless, Includes Door Gasket)		Appelez-nous	-
26	W11821587		Pantry Door Gasket (grey)   (Replaces: W11608640)		Appelez-nous	-
27	W11821730		Wire, Rc Jumper (includes Thermistor)   (Replaces: W11669756)		Appelez-nous	-
28	W11787520		Storage Pan   (Replaces: W11692922)				$ 181.06
29	W11785649		Reed Switch   (Replaces: W11548358)				$ 49.08
30	W11821549		Holder, Reed Switch   (Replaces: W11604590)		Appelez-nous	-
31	W11818649		Led Light Module   (Replaces: W11598835)		Appelez-nous	-
	W11830075		Pantry Adapter Assembly (right Hand)   (Replaces: W11579336)		Appelez-nous	-
