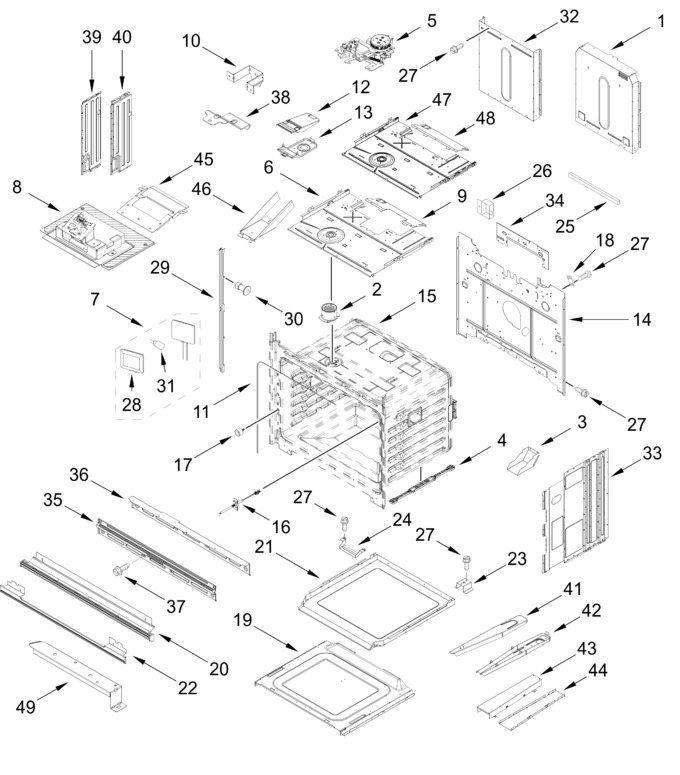

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11165250		Duct, Upper Chassis Back				$ 76.32
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 25.54
3	W11256432		Deflector, Lower Back Exhaust		Appelez-nous	-
4	W11598152		Spacer, Base   (Replaces: W11558603)			Immediately	$ 18.14
5	W11811612		Latch, Motorized   (Replaces: W11655005)			Immediately	$ 69.86
6	W11818382		Top, Chassis   (Replaces: W11694204)		Appelez-nous	-
7	W11292252		Light Assembly   (Replaces: W11205574)			Immediately	$ 107.48
8	W11818652		Camera Module Assembly   (Replaces: W11626903)		Appelez-nous	-
9	W11818385		Deflector, Blower   (Replaces: W11694214)		Appelez-nous	-
10	W11344645		Hat Bracket, Vent		Appelez-nous	-
11	W11692454		Gasket   (Replaces: W11608108)				$ 146.92
12	W11256424		Cover, Vent Exhaust		Appelez-nous	-
13	W11256423		Base, Vent Exhaust		Appelez-nous	-
14	W11223327		Back, Chassis		Appelez-nous	-
15	ARIF1DCB018B2324CAD9D04009CD738647B		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W11758691		Probe, Sensor   (Replaces: W11685697)				$ 33.87
17	W11598125		Bumper And Screw   (Replaces: W11166315)				$ 23.37
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W11598115		Base, Chassis   (Replaces: W11135103)				$ 75.86
20	W11467336		Bottom Vent Assembly (black)				$ 200.78
21	W11244446		Duct, Bottom Chassis				$ 70.25
22	W11714646		Trim, Bottom Vent (black)   (Replaces: W11624689)				$ 90.33
23	W11135135		Support, Air Channel				$ 36.15
24	W11731183		Spacer, Bottom Chassis Duct   (Replaces: W11135125)				$ 38.85
25	W11211345		Foam, U-bracket		Appelez-nous	-
26	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
27	7101P42660		Screw		Appelez-nous	-
28	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 96.33
29	W11235460		Cover, Side Trim (left)				$ 114.20
30	W11754870		Rivet (black)   (Replaces: W11696855)		Appelez-nous	-
31	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
32	W11134657		Duct, Lower Chassis Back		Appelez-nous	-
33	W11165274		Side, Chassis				$ 80.99
34	W11186652		Bracket, U-shape		Appelez-nous	-
35	W11235482		Vent, 30 In Center (black)				$ 106.95
36	W11715951		Vent, 30 In Top   (Replaces: W11334857)				$ 103.40
37	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 7.55
38	W11342780		Bracket, Top Front		Appelez-nous	-
39	W11598150		Cover, Suction (left)   (Replaces: W11167419)				$ 74.06
40	W11598151		Cover, Suction (right)   (Replaces: W11186675)				$ 74.06
41	W11256421		Cover, Top Back Exhaust		Appelez-nous	-
42	W11256420		Base, Top Back Exhaust		Appelez-nous	-
43	W11256431		Cover, Lower Back Exhaust		Appelez-nous	-
44	W11256430		Base, Lower Back Exhaust		Appelez-nous	-
45	W11818394		Cover, Insulation   (Replaces: W11694215)		Appelez-nous	-
46	W11818413		Duct, Blower   (Replaces: W11694216)		Appelez-nous	-
47	W11818414		Chassis, Top   (Replaces: W11729557)		Appelez-nous	-
48	W11818416		Deflector, Fan   (Replaces: W11729909)		Appelez-nous	-
49	W11818417		Bracket, Harness   (Replaces: W11739132)		Appelez-nous	-
	W11688564		Insulation, Wrap   (Replaces: W11188284)		Appelez-nous	-
	ARIF2B7EB08DAAB96CE2BF89D552EA4B462		(upper Oven)		Appelez-nous	-
	W11235461		Cover, Side Trim (right)				$ 114.20
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	ARI2DF6ED6BF52DCC80154F07C1ADFE14B8		(lower Oven)		Appelez-nous	-
	W11818396		Insulation, Cavity   (Replaces: W11704930)		Appelez-nous	-
