Control Panel And Latch Parts


Door And Panel Parts


Fill, Drain And Overfill Parts


Inner Door Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts

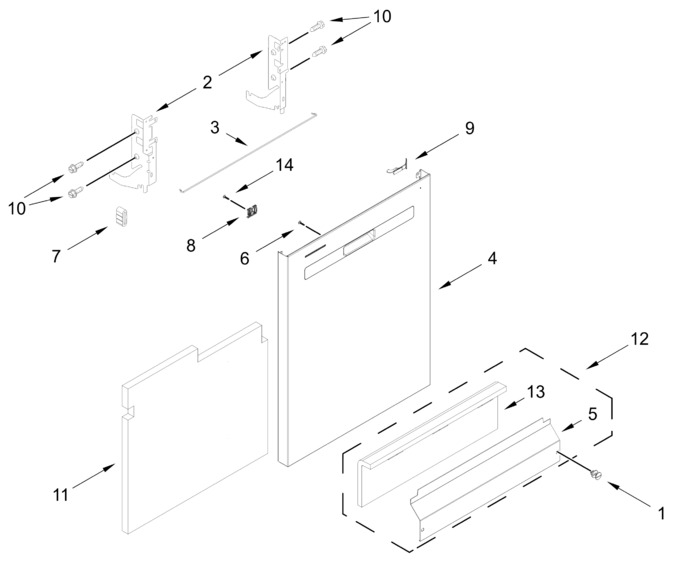

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10503549		Fastener (white)   (Replaces: W10503549)			Immediately	$ 7.77
2	W11806565		Arm, Hinge (left)   (Replaces: W11687975)			Immediately	$ 142.39
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	W11613481		Front Panel (white, Includes Barrel Nut And Light Pipe)   (Replaces: W11528189)				$ 418.71
5	W11763739		Access Panel (white)   (Replaces: W11674255)				$ 42.65
6	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93
8	W10692757		Barrel Nut, Front Panel				$ 16.01
9	W11504190		Light, Pipe		Appelez-nous	-
10	W11755068		Screw   (Replaces: W11714324)		Appelez-nous	-
11	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
12	W10827632		Access Panel & Insulation Assy (white)   (Replaces: W10369025)			Immediately	$ 163.70
13	W10831329		Insulation, Toe Panel   (Replaces: W10519755)			Immediately	$ 43.30
14	WPW10213953		Screw   (Replaces: W10711884)			Immediately	$ 7.55
	W11806608		Arm, Hinge (right)   (Replaces: W11687976)			Immediately	$ 142.24
