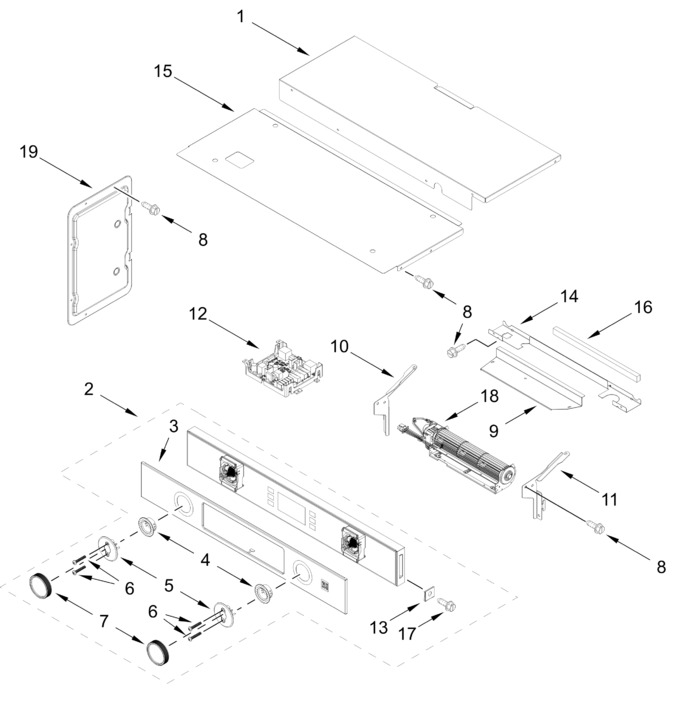

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10588732		Cover, Top Back 30 In Chassis				$ 225.86
2	W11734985		Control Panel Assembly (stainless)		Appelez-nous	-
3	W11818380		Skin, Control Panel (stainless, Includes Spacers)   (Replaces: W11791663)		Appelez-nous	-
4	W11781353		Guide, Light   (Replaces: W11684650)		Appelez-nous	-
5	W11781354		Bezel   (Replaces: W11685047)		Appelez-nous	-
6	W11781355		Screw   (Replaces: W11718518)		Appelez-nous	-
7	W11812078		Knob (stainless)   (Replaces: W11796432)		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	W10681157		Cover, Combo Blower		Appelez-nous	-
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10655462		Bracket, Blower (right)		Appelez-nous	-
12	W11818381		Manager, Appliance (fittipaldi)   (Replaces: W11797829)		Appelez-nous	-
13	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	W11754858		Divider, Chassis Back   (Replaces: W11664750)		Appelez-nous	-
15	W11754859		Cover, Top Front 30 In Chassis   (Replaces: W11646291)		Appelez-nous	-
16	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
17	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
18	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
19	W11754860		Panel, Combo Chassis Side   (Replaces: W11659057)		Appelez-nous	-
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	W11818407		Harness, Camera Usb Combo 1   (Replaces: W11719485)		Appelez-nous	-
	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 7.55
	W11818408		Harness, Camera Usb Combo 2   (Replaces: W11719486)		Appelez-nous	-
	W11783623		Harness, Signal   (Replaces: W11774316)		Appelez-nous	-
	W11783622		Harness, Main   (Replaces: W11774315)				$ 465.24
	W11356991		Harness, Ground Console Combo		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11602626		Bag, Hardware   (Replaces: W11394923)				$ 23.47
	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 61.80
	4448664		Clamp, Conduit				$ 21.41
