Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARIF93179EB3F6CD1D1805E65CA61F82AAB Element, Hidden Bake (not Serviced) Appelez-nous -
2 W11688507 Insulation, Convection Cover   (Replaces: W10282821) In-Stock Immediately $ 27.10

3 W10822069 Rack, Oven In-Stock Immediately $ 138.59

4 W11794357 Rack, Sliding Oven   (Replaces: W11496903) Special Order $ 534.90

5 WP9755546 Nut, Hidden   (Replaces: 9755546) Special Order $ 7.30

6 W11662207 Baffle, Convection   (Replaces: W11212180) Special Order $ 173.23

7 W10860984 Fan, Convection   (Replaces: W10722667) In-Stock Immediately $ 176.41

8 W10819914 Blade, Fan   (Replaces: W10631503) In-Stock Immediately $ 88.67

9 W10261523 Plate, Fan Special Order $ 77.85

10 W10794042 Nut, Acorn (left Hand Thread)   (Replaces: W10631504) Special Order $ 13.14

11 W11643125 Element, Convection Steam   (Replaces: 9762242) In-Stock Immediately $ 126.84

12 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

13 W11106922 Tray, Hidden Bake Special Order $ 172.11

14 W10850807 Screw   (Replaces: W10720084) Special Order $ 7.77

15 W10739592 Screw Appelez-nous -
16 W10160856 Shield, Element Broil Appelez-nous -
17 W10115994 Element, Broil Special Order $ 299.72


    View Diagram in Separate Window     Print Icon   Print Part List

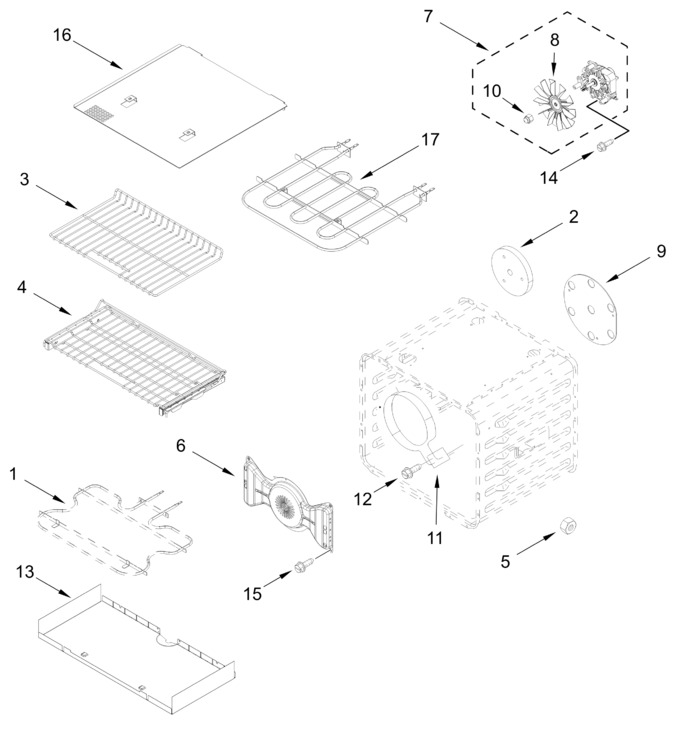

Diagram for KFDS936SWF00
