SELECT A DIAGRAM
Base And Pedestal Unit
Case, Gearing And Planetary Unit
Color Variation Parts
New Model Search:

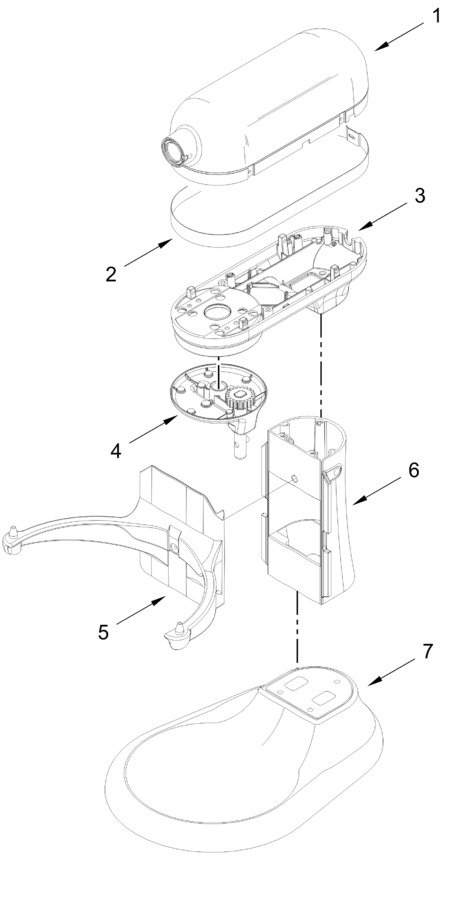

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11681929 | Motor Housing (almond Cream) (Replaces: 9705298) |
|
- | |||||
| 2 | W11649200 | Trim Band (bright Aluminum) (Replaces: W11420352) |
|
- | |||||
| 3 | W11527636 | Lower Gearcase (almond Cream) |
|
- | |||||
| 4 | W11595416 | Planetary (silent Silver) |
|
$ 85.73 | |||||
| 5 | 9705358 | Bowl Support And Pins (almond Cream) |
|
- | |||||
| 6 | 9705322 | Column And Pins (almond Cream_ |
|
- | |||||
| 7 | W11672227 | Base And Foot Assembly (almond Cream) (Replaces: 9705346) |
|
- |
