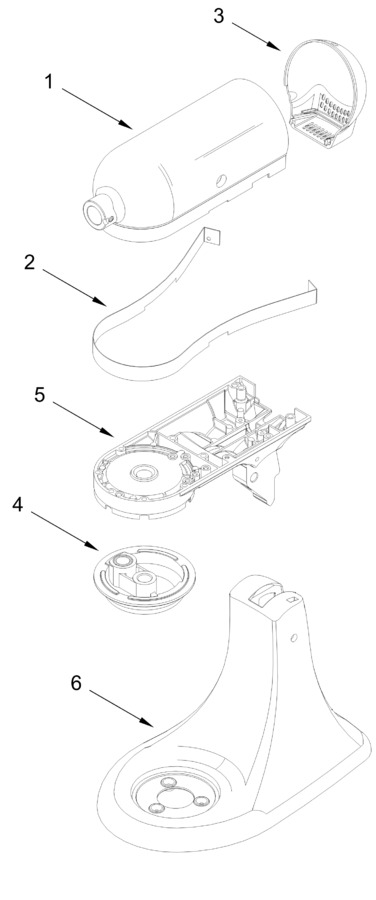

Base And Pedestal Unit Parts
Case, Gearing And Planetary Unit Parts
Color Variation Parts
Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11601672 | Motor Housing (onyx Black) |
|
$ 90.25 | |||||
| 2 | W11092112 | Trim Band (black) |
|
- | |||||
| 3 | 24025314 | End Cover (onyx Black) |
|
- | |||||
| 4 | 24028616 | Planetary (onyx Black) |
|
- | |||||
| 5 | 24035056 | Lower Gearcase (onyx Black) |
|
- | |||||
| 6 | W11205080 | Pedestal With Feet And Headlock (onyx Black) (Replaces: 3184275) |
|
- |
