SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts


Shelf Parts


Unit Parts

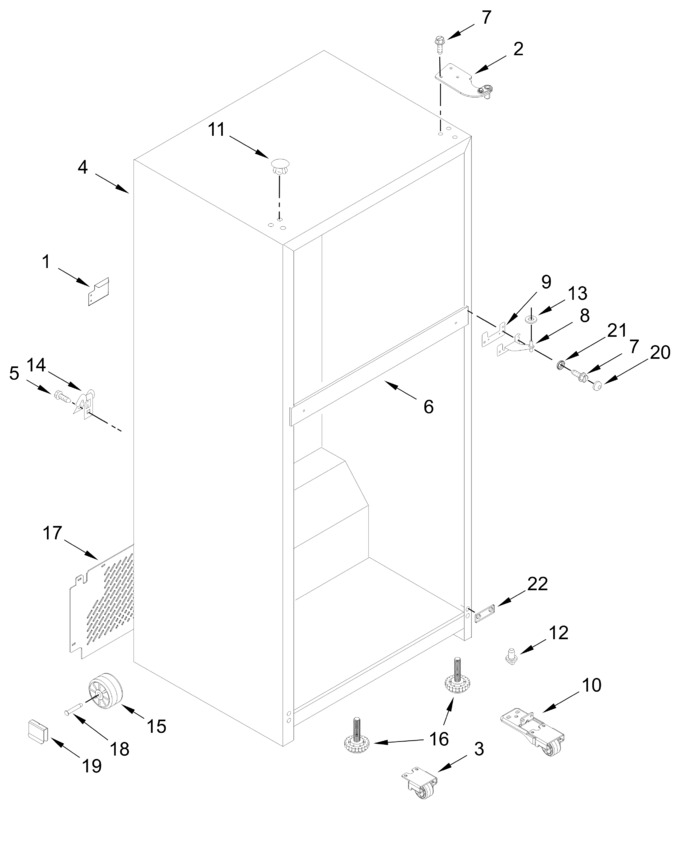

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11528668		Access Cover, Valve   (Replaces: W11458717)		Appelez-nous	-
2	WP2261963		Hinge Assembly, Top   (Replaces: 2261963)			Immediately	$ 119.42
3	W11256723		Roller Assembly   (Replaces: W10842654)				$ 94.94
4	ARIF06CCFE9BD0F0FDB975806FEDA58D816		Cabinet (not Serviced)		Appelez-nous	-
5	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
6	ARIC034192546E98BAD7D6171A40486F101		Rail, Center (not Serviced)		Appelez-nous	-
7	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
8	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 92.02
9	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 11.18
10	W11096015		Lower Hinge And Roller Assembly   (Replaces: W10843861)			Immediately	$ 94.94
11	WPW10520304		Plug, Hole (white)   (Replaces: W10520304)			Immediately	$ 19.22
12	W11026307		Hinge Pin   (Replaces: W10638688)			Immediately	$ 77.61
13	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 11.42
14	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 22.12
15	WPW10475495		Roller, Cabinet   (Replaces: W10475495)			Immediately	$ 32.06
16	W10854419		Leveler   (Replaces: W10671258)			Immediately	$ 18.02
17	W11476772		Cover, Unit   (Replaces: W11307288)				$ 43.50
18	W11594405		Axle, Roller   (Replaces: 981126)			Immediately	$ 19.12
19	WP2174706		Clip, Roller   (Replaces: 2174706)				$ 11.53
20	W10846529		Cap, Dome (white)   (Replaces: W10674771)			Immediately	$ 19.82
21	W10847959		Cap, Washer Dome   (Replaces: W10674773)				$ 11.27
22	W11528669		Shim, Bottom Hinge   (Replaces: W11359355)				$ 16.89

    View Diagram in Separate Window       Print Part List
