01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional

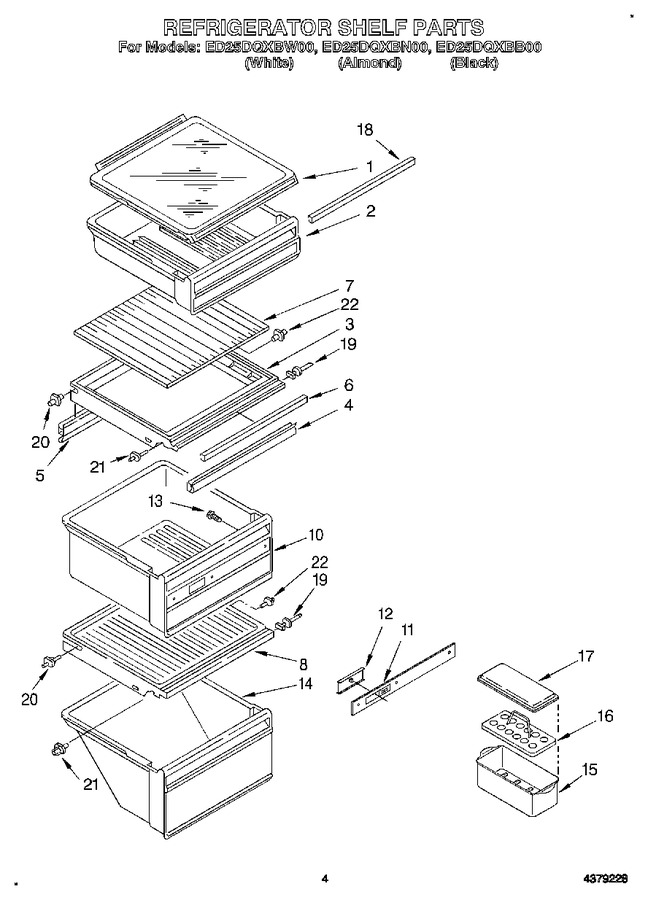

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2162991		Shelf Assembly, Glass Sliding (3)		Appelez-nous	-
2	2170578		Snack Bin		Appelez-nous	-
3	WP1126289		Cover, Crisper   (Replaces: 2162915)				$ 181.71
4	1115291		Gasket, Crisper (front)		Appelez-nous	-
5	1121385		Gasket, Crisper (rear)		Appelez-nous	-
6	2162845		Trim, Crisper Cover		Appelez-nous	-
7	2162983		Glass, Crisper Cover		Appelez-nous	-
8	WP2148298		Cover, Meat Pan   (Replaces: 2162790)				$ 174.59
10	2162860		Pan, Crisper		Appelez-nous	-
11	2162854		Front, Crisper Pan		Appelez-nous	-
12	2162849		Slide, Humidity Control		Appelez-nous	-
13	489268		Screw (3)		Appelez-nous	-
14	2162932		Meat Pan		Appelez-nous	-
15	W10136387A		Egg Bin   (Replaces: 2170522)				$ 18.61
16	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 17.89
17	2164374		Cover		Appelez-nous	-
18	2162989		Trim		Appelez-nous	-
19	4388538		Shelf Stud   (Replaces: 2147997)			Immediately	$ 31.34
20	1115290		Shelf Stud				$ 7.61
21	WP2149540		Shelf Stud   (Replaces: 2149540)				$ 10.44
22	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 31.34
