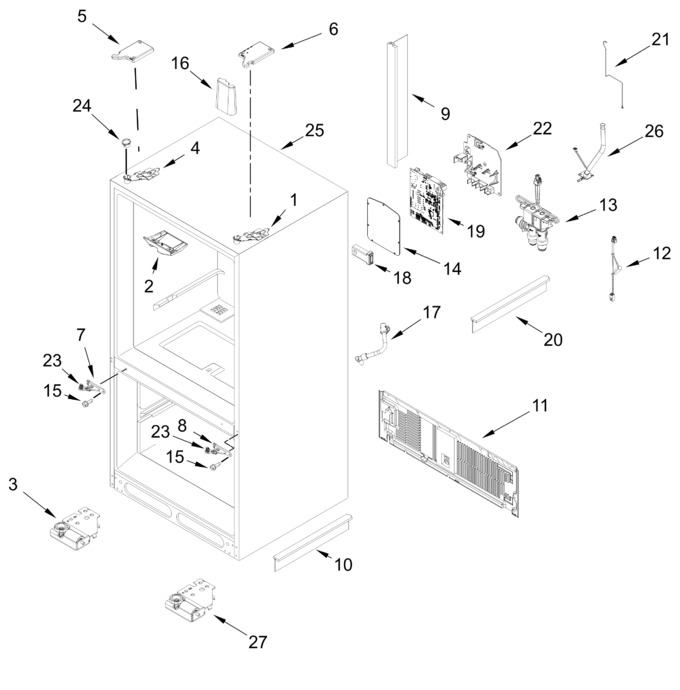

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11786665		Top Hinge Assembly (right Hand)   (Replaces: W11354191)		Appelez-nous	-
2	W11785606		Pivot Block   (Replaces: W11565664)		Appelez-nous	-
3	W11791081		Roller Bracket Assembly (left Hand)   (Replaces: W11561088)				$ 80.20
4	W11791043		Top Hinge Assembly (left Hand)   (Replaces: W11342589)		Appelez-nous	-
5	W11793922		Hinge Cover Assembly (black, Left Hand)   (Replaces: W11635008)		Appelez-nous	-
6	W11794058		Hinge Cover Assembly   (Replaces: W11635487)		Appelez-nous	-
7	W11786846		Hinge Center Assembly (left Hand)   (Replaces: W11553339)				$ 93.33
8	W11786849		Hinge Center Assembly (right Hand)   (Replaces: W11554905)		Appelez-nous	-
9	W11785608		Air Separator Assembly   (Replaces: W11681218)		Appelez-nous	-
10	W11785609		Air Separator Assembly (bottom)   (Replaces: W11681219)		Appelez-nous	-
11	W11785611		Unit Cover Assembly   (Replaces: W11673278)		Appelez-nous	-
12	W11793889		Wire Assembly Jumper Assembly   (Replaces: W11559747)				$ 66.53
13	W11807354		Dual Valve   (Replaces: W11777328)				$ 172.38
14	W11785633		Lid Hv Assembly   (Replaces: W11701312)		Appelez-nous	-
15	W11819838		Screw   (Replaces: W11729359)		Appelez-nous	-
16	W11785638		Tube Inlet   (Replaces: W11551460)				$ 63.95
17	W11785640		Filter Outlet Tube   (Replaces: W11576739)				$ 91.27
18	W11785696		Reed Switch Holder   (Replaces: W11658592)		Appelez-nous	-
19	W11833835		Control Board   (Replaces: W11815970)				$ 405.10
20	W11790663		Air Bottom Separator   (Replaces: W11676389)		Appelez-nous	-
21	W11807432		Water Tube   (Replaces: W11618275)			Immediately	$ 91.27
22	W11790671		Triple Valve Bracket   (Replaces: W11541794)		Appelez-nous	-
23	WPW10505294		Door Coupler   (Replaces: W10505294)				$ 11.90
24	W10705239		Door Retainer			Immediately	$ 51.64
25	ARI2948F547D7C4C1B6CA0878B04EDFC4EF		Cabinet (not A Servicable Part)		Appelez-nous	-
26	W11818596		Fill Tube Assembly   (Replaces: W11607255)				$ 138.00
27	W11791174		Roller Bracket Assembly (right Hand)   (Replaces: W11561087)				$ 80.20
