SELECT A DIAGRAM

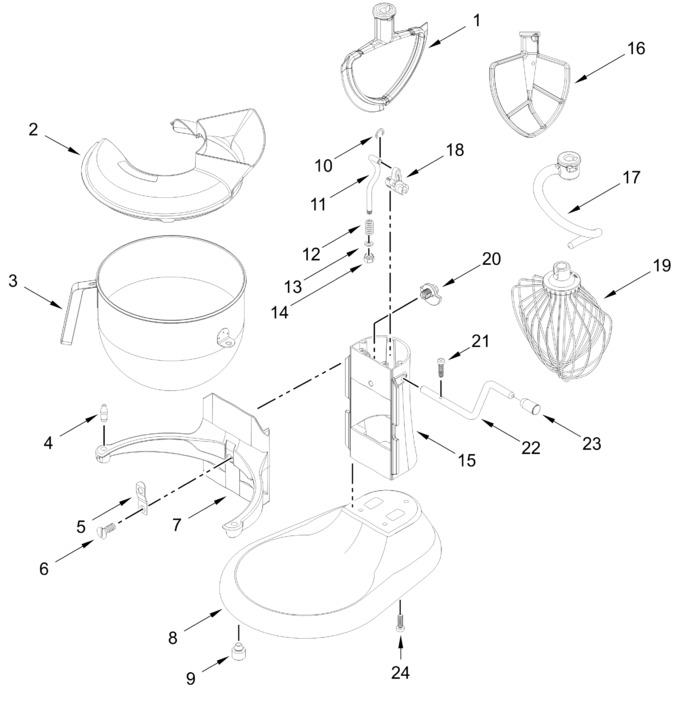

Base And Pedestal Unit


Case, Gearing And Planetary Unit


Color Variation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11700635		Beater, Double Flex Edge   (Replaces: W11569891)		Appelez-nous	-
2	W11647946		Shield, Pouring (wide)   (Replaces: W11385624)				$ 58.43
3	W11770848		Bowl, 7 Qt. (brushed)   (Replaces: W11685334)		Appelez-nous	-
4	WP240185		Pin, Retaining Bowl   (Replaces: 240185)				$ 4.50
5	WPW10504114		Clip, Bowl Retainer   (Replaces: W10504114)			Immediately	$ 5.14
6	W10861883		Screw   (Replaces: 3400018)			Immediately	$ 4.94
7	ARIFA9287664AAA2701DE4464F8C07A9534		Bowl Support (refer To Color Variation Parts Page)		Appelez-nous	-
8	ARIBE6A50F41021F970B26A621F1823EE46		Base And Foot Assembly (refer To Color Variation Parts Page)		Appelez-nous	-
9	WP9708649		Foot   (Replaces: 9708649)			Immediately	$ 4.79
10	WP9703307		Ring, Retaining   (Replaces: 9703307)			Immediately	$ 4.42
11	W11775238		Rod, Bowl Lift   (Replaces: W11376364)				$ 5.73
12	4159622		Spring, Lift Rod   (Replaces: 9237)			Immediately	$ 4.70
13	W11708395		Washer   (Replaces: 9703439)				$ 4.47
14	8533907		Nut				$ 24.83
15	ARI8B780729AB22E09534311DBD75305185		Column Assembly (refer To Color Variation Parts Page)		Appelez-nous	-
16	W11458649		Beater, Flat (stainless)   (Replaces: W10720793)				$ 86.22
17	W11397072		Hook, Dough (stainless)   (Replaces: W10720794)				$ 75.82
18	WP9706885		Arm, Bowl Lift   (Replaces: 9706885)			Immediately	$ 5.17
19	WPW10600940		Whip, Wire   (Replaces: W10600940)				$ 124.95
20	W11721849		Cam, Adjusting   (Replaces: 9703426)				$ 6.08
21	WP3400814		Screw   (Replaces: 3400863)				$ 4.62
22	W11778321		Handle, Bowl Lift   (Replaces: W11376371)				$ 24.01
23	W11682560		Cap, Handle   (Replaces: W11663366)		Appelez-nous	-
24	W10913677		Screw   (Replaces: 3400200)				$ 4.64

    View Diagram in Separate Window       Print Part List
