Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4056035373 Lower Basket Assembly Appelez-nous -
2 5304519285 Rack Assembly, Upper, W/rollers Special Order $ 404.30

3 5304519287 Basket Assembly, Cutlery Special Order $ 67.96


    View Diagram in Separate Window     Print Icon   Print Part List

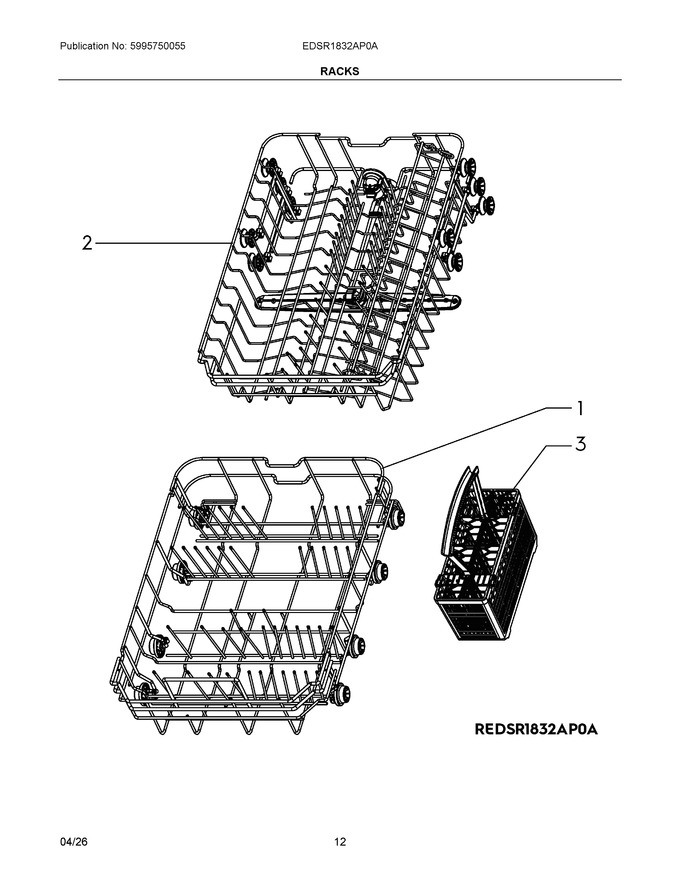

Diagram for EDSR1832AP0A
