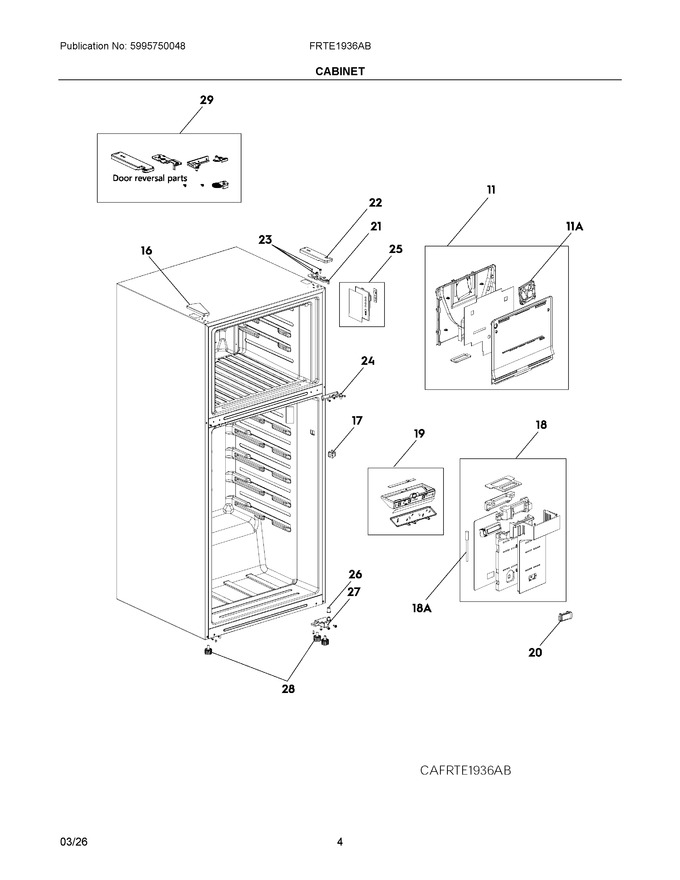

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	4056044490		Cover Evaporator, Assembly, Freezer		Appelez-nous	-
16	5304537008		Cover, Hinge, Upper-left		Appelez-nous	-
17	5304498687		Switch, Lamp/light				$ 51.03
18	4056044524		Air Duct Assembly, Refrigerators		Appelez-nous	-
19	5304536961		Lamp Assembly		Appelez-nous	-
20	5304536968		Cover, Air-duct		Appelez-nous	-
21	5304523545		Hinge, Door, Upper				$ 35.10
22	4056044714		Hinge Cover, Upper Cabinet, Right Side		Appelez-nous	-
23	4056044540		Screw, Upper Hinge, Right		Appelez-nous	-
24	5304523548		Hinge Assembly, Door, Middle			Immediately	$ 41.72
25	4056044607		Control & Display Board, Assembly		Appelez-nous	-
26	4056044557		Sleeve, Hinge Pin, Right Lower		Appelez-nous	-
27	5304523546		Hinge Assembly, Door, Lower				$ 68.69
28	4056044565		Leveling Foot, Adjustable		Appelez-nous	-
29	4056044722		Door Reverse Kit		Appelez-nous	-
11A	5304536957		Fan Motor Assembly				$ 142.92
18A	5304536967		Thermostat, Temperature			Immediately	$ 9.91
