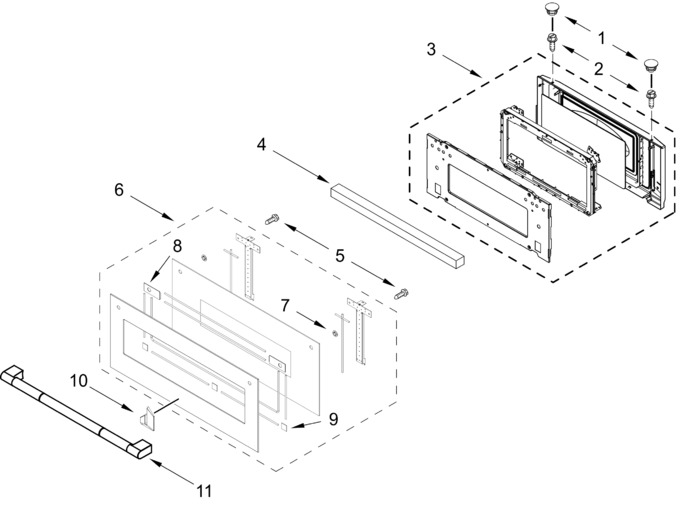

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756840 | Cap, Screw (Replaces: 8304588BL) |
|
$ 12.34 | |||||
| 2 | 7101P33860 | Screw |
|
- | |||||
| 3 | W11684570 | Inner Door Assembly (Replaces: W10687342) |
|
Immediately | $ 593.74 | ||||
| 4 | W10359769 | Foam, Door Handle |
|
$ 14.76 | |||||
| 5 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 8.27 | ||||
| 6 | W11200398 | Outer Door Assembly (stainless) |
|
$ 648.61 | |||||
| 7 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 8 | W10650497 | Spacer, Handle |
|
- | |||||
| 9 | WPW10517428 | Spacer, Vent (Replaces: W10517428) |
|
Immediately | $ 12.44 | ||||
| 10 | W11700312 | Badge (stainless) (Replaces: W11238658) |
|
Immediately | $ 116.54 | ||||
| 11 | W11342060 | Door Handle Assembly (stainless) (Replaces: W11251202) |
|
$ 398.16 |
