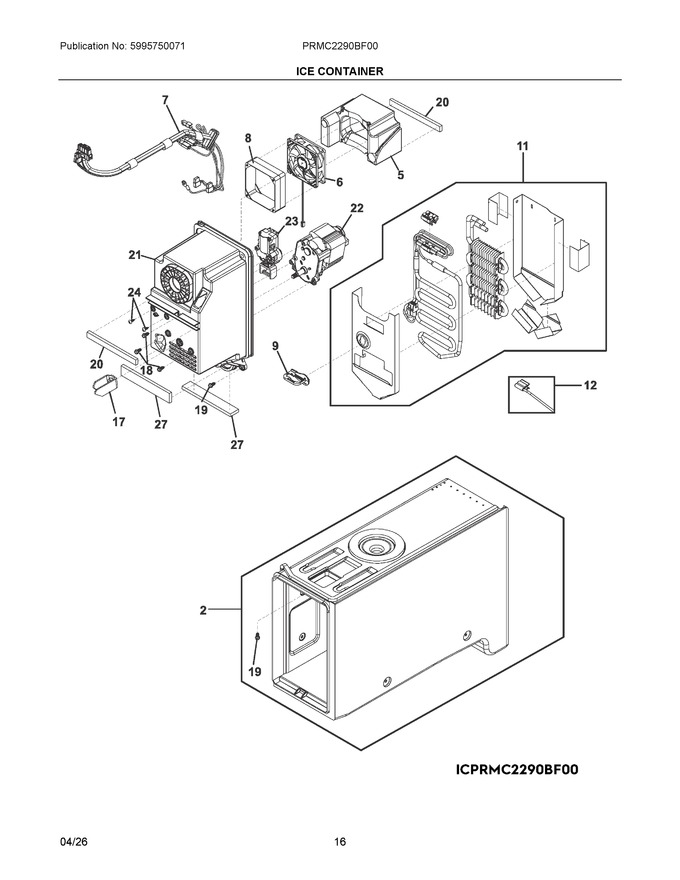

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | A20299501 | Housing Assembly, Ice Maker, W/gaskets |
|
- | |||||
| 5 | 5304523073 | Duct, Ice Maker Fan |
|
Immediately | $ 44.77 | ||||
| 6 | 140142391030 | Fan Assembly, Motor, Ice Maker, 3.6w, 3500rpm |
|
- | |||||
| 7 | 5304534890 | Harness, Wiring, Air Handler |
|
$ 112.05 | |||||
| 8 | 5304508063 | Grommet, Fan |
|
Immediately | $ 17.69 | ||||
| 9 | 5304508037 | Connector, Harness, Evap Cover |
|
$ 16.01 | |||||
| 11 | 140068083116 | Evaporator Assembly, Ice Maker, Complete |
|
Immediately | $ 106.42 | ||||
| 12 | 5303918645 | Thermistor Kit, Evaporator, W/connector |
|
Immediately | $ 94.00 | ||||
| 17 | 241829001 | Bar-drive |
|
Immediately | $ 65.05 | ||||
| 18 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 14.96 | ||||
| 19 | 519088008 | Screw, Vt Af/2p, 5 X 16 |
|
- | |||||
| 20 | 5303918784 | Gasket-evap Housing, .250x.250x5.250 (Replaces: 242095404) |
|
Immediately | $ 136.39 | ||||
| 21 | 5304534888 | Housing, Air Handler |
|
Immediately | $ 197.38 | ||||
| 22 | 5304534889 | Motor, Auger |
|
Immediately | $ 196.91 | ||||
| 23 | 140159718018 | Selector, Ice Crush/cube |
|
$ 43.16 | |||||
| 24 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.37 | |||||
| 27 | 5304519211 | Gasket, Air Handler, Front |
|
$ 10.50 |
