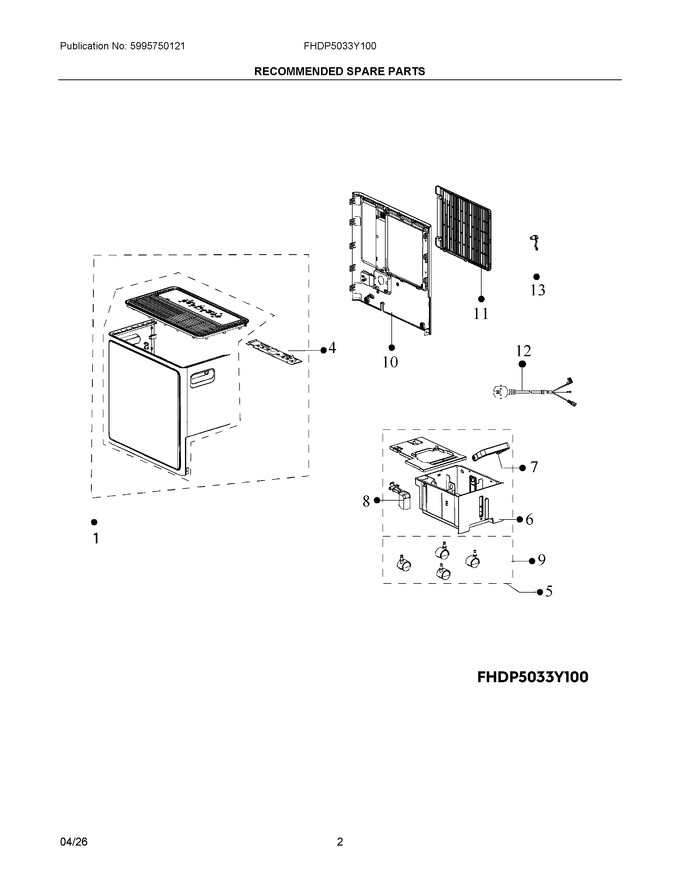

02 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4056037304 | Front Panel, Assembly |
|
- | |||||
| 4 | 4056037338 | Control And Display Board, Assembly |
|
- | |||||
| 5 | 4056037346 | Water Tank Assembly |
|
- | |||||
| 6 | 4056037353 | Water Tank |
|
- | |||||
| 7 | 4056037361 | Handle Water Tank |
|
- | |||||
| 8 | 5304523391 | Float, Bucket |
|
$ 13.01 | |||||
| 9 | 4056034384 | Wheel Assembly, Universal |
|
- | |||||
| 10 | 4056037379 | Rear Panel |
|
- | |||||
| 11 | 4056037387 | Grill, Air Intake |
|
- | |||||
| 12 | 4056037395 | Cord, Electric Service |
|
- | |||||
| 13 | 5304502151 | Plug, Drain Spigot, Rear |
|
- |
