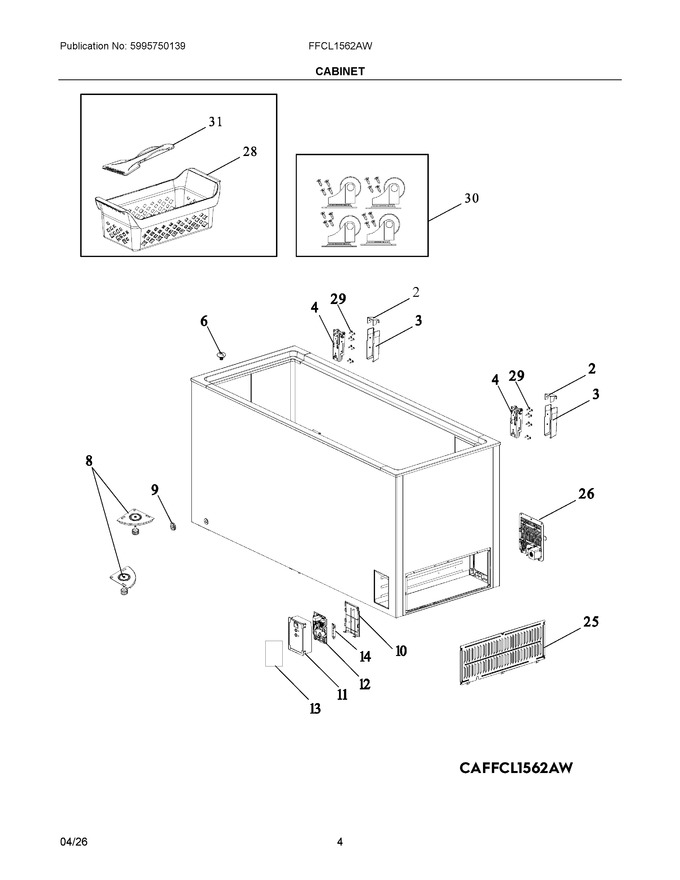

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304512839		Cover, Hinge, Upper				$ 6.70
3	5304512838		Cover, Hinge, Lower				$ 14.15
4	5304533541		Hinge, Door			Immediately	$ 87.86
6	5304512558		Cap, Drain Tube				$ 10.85
8	5304512560		Foot Assembly, Cabinet, Adjustable				$ 75.33
9	5304512561		Cap, Exterior Drain				$ 12.65
10	4056051693		Housing Control Box		Appelez-nous	-
11	4056051719		Control Panel, Temperature Con				$ 15.89
12	4056051883		Main Electronic Board, Pcb				$ 130.98
13	4056051669		Display, Control Panel		Appelez-nous	-
14	4056051701		Pc Board, Driver		Appelez-nous	-
25	4056051784		Cover Access, Side Panel		Appelez-nous	-
26	4056051792		Ventilating Grill, Rear Panel		Appelez-nous	-
28	FRZRHGBSKT		Basket Freezer   (Replaces: 4056051800)		Appelez-nous	-
29	5304512579		Screw, Tapping				$ 6.51
30	5304512848		Caster Kit, 4 Casters, W/screw Kit   (Replaces: 5304512840)				$ 231.04
31	4056051826		Scoop Ice				$ 6.94
