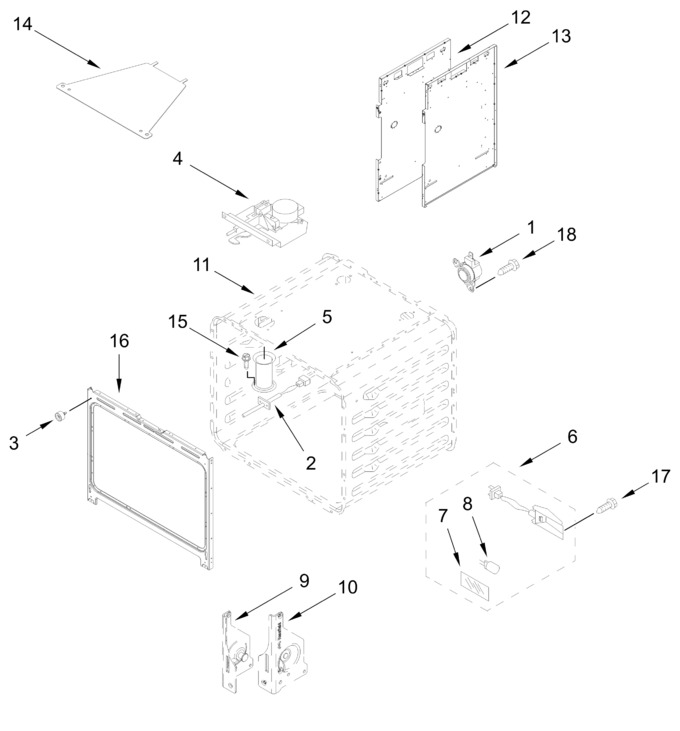

Burner Box And Orifice Holder Assembly Parts


Chassis Parts


Cooktop, Burner And Grate Parts


Internal Oven Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
2	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
3	W10105790		Bumper (includes Screw)				$ 7.41
4	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 327.65
5	W11318343		Tube, Vent   (Replaces: W11290663)				$ 105.43
6	W11233684		Oven Light Assembly   (Replaces: W11223932)				$ 111.33
7	W10169756		Lens, Light				$ 42.19
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	ARI8F73C283CB1A0CC3E053DB4C6CDD3B07		Receiver, Hinge (not Serviced)		Appelez-nous	-
10	ARI8F73C283CB1A0CC3E053DB4C6CDD3B07		Receiver, Hinge (not Serviced)		Appelez-nous	-
11	ARID977495C9905E1411E0312A526DED125		Liner, Oven (not Serviced)		Appelez-nous	-
12	W11750310		Retainer, Left Side Chassis   (Replaces: W11683297)		Appelez-nous	-
13	W11750312		Retainer, Right Side Chassis   (Replaces: W11683296)		Appelez-nous	-
14	W10160858		Cover, Latch				$ 76.94
15	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
16	W11192749		Frame, Front				$ 395.15
17	4449748		Screw				$ 14.23
18	7101P42660		Screw		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11688743		Insulation, Wrap   (Replaces: W10282811)		Appelez-nous	-
	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 8.36
	W11688538		Insulation, Back, 36 In   (Replaces: W10282813)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
