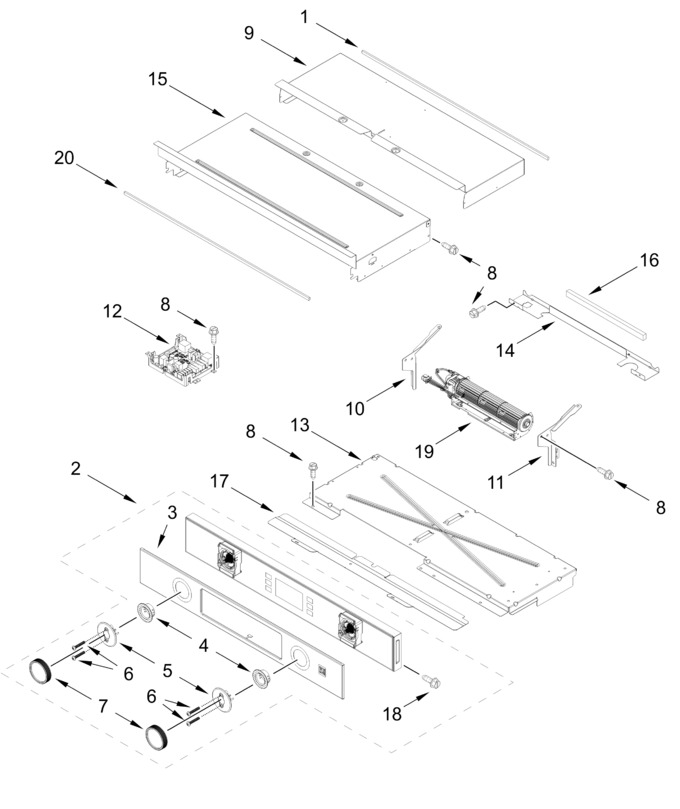

Control Panel Parts
Internal Oven Parts
Optional Parts (not Included)
Oven Door Parts
Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10728475 | Gasket, Rubber (380mm) |
|
$ 38.13 | |||||
| 2 | W11734981 | Control Panel Assembly (black Ore) |
|
- | |||||
| 3 | W11820145 | Skin, Control Panel (black Ore, Includes Spacers) (Replaces: W11791665) |
|
- | |||||
| 4 | W11781353 | Guide, Light (Replaces: W11684650) |
|
- | |||||
| 5 | W11781354 | Bezel (Replaces: W11685047) |
|
- | |||||
| 6 | W11781355 | Screw (Replaces: W11718518) |
|
- | |||||
| 7 | W11812080 | Knob (black Ore) (Replaces: W11796434) |
|
- | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | W11758705 | Cover, 30 In Top Back (Replaces: W11706417) |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 12 | W11818653 | Appliance Manager (Replaces: W11797831) |
|
- | |||||
| 13 | W11758703 | Tray, Electronic (Replaces: W11645754) |
|
- | |||||
| 14 | W11754858 | Divider, Chassis Back (Replaces: W11664750) |
|
- | |||||
| 15 | W11789693 | Cover, 30 In Chassis Top (front) (Replaces: W11767801) |
|
- | |||||
| 16 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 17 | W11818410 | Extender, Electronic Tray (Replaces: W11801532) |
|
- | |||||
| 18 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 14.72 | |||||
| 19 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 388.25 | ||||
| 20 | W11226314 | Gasket, Rubber (735mm) (Replaces: W11162063) |
|
- | |||||
| 4450800 | Screw, Grounding |
|
$ 13.47 | ||||||
| W11818412 | Harness, Camera (Replaces: W11719484) |
|
- | ||||||
| 4448664 | Clamp, Conduit |
|
$ 21.41 | ||||||
| W11781371 | Harness, Comm And Eol (Replaces: W11774314) |
|
- | ||||||
| W11759574 | Harness, Main (Replaces: W11476484) |
|
Immediately | $ 250.05 | |||||
| W11759571 | Harness, Signal (Replaces: W11476487) |
|
$ 139.03 | ||||||
| W10487999 | Clip, Harness |
|
$ 21.12 | ||||||
| W11233570 | Harness, Console |
|
Immediately | $ 234.66 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11602626 | Bag, Hardware (Replaces: W11394923) |
|
$ 23.47 | ||||||
| W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 61.80 |
