SELECT A DIAGRAM

Chassis Parts


Cooktop And Control Panel Parts


Induction Module Parts


Internal Oven Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts


Venting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

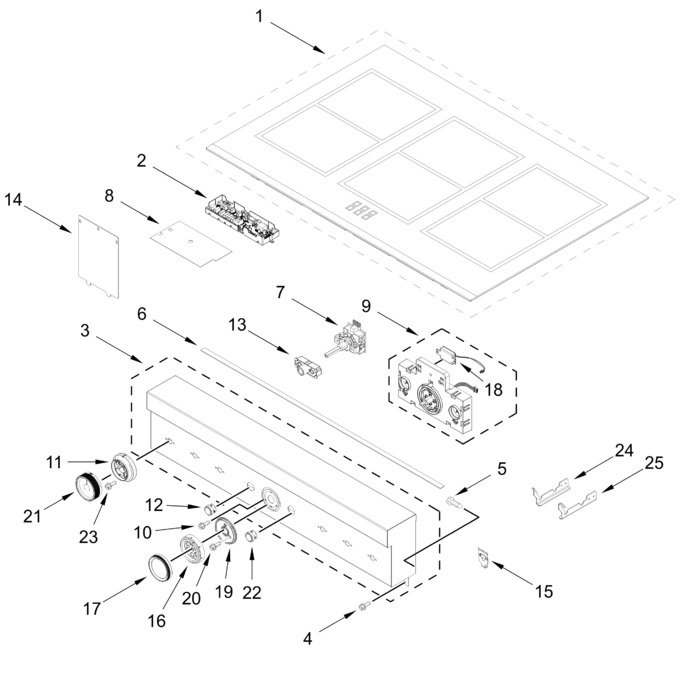

1	W11796137		Glass Cooktop Assembly   (Replaces: W11750844)				$ 1,658.11
2	W11790544		Appliance Manager, Powermax   (Replaces: W11767302)				$ 409.76
3	W11821250		Console Panel (black Ore)   (Replaces: W11768548)		Appelez-nous	-
4	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
5	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
6	W11766188		Gasket, Console   (Replaces: W11697601)		Appelez-nous	-
7	W11765221		Switch, Infinite   (Replaces: W11704441)			Immediately	$ 67.10
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11790527		User Interface   (Replaces: W11777685)				$ 465.97
10	W10162096		Screw				$ 21.90
11	W11821251		Bezel, Induction (black Ore)   (Replaces: W11748800)		Appelez-nous	-
12	W11820165		Button Assembly, Oven Light (black Ore)   (Replaces: W11769833)		Appelez-nous	-
13	W11766154		Sleeve, Bezel   (Replaces: W11697214)		Appelez-nous	-
14	W10115843		Cover, Ignition		Appelez-nous	-
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
16	W11821252		Knob, Oven Mode (black Ore)   (Replaces: W11731059)		Appelez-nous	-
17	W11820164		Knob, Oven Temperature (black Ore)   (Replaces: W11740404)		Appelez-nous	-
18	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
19	W11820163		Bezel Assembly, Oven (black Ore)   (Replaces: W11738553)		Appelez-nous	-
20	W11788785		Screw   (Replaces: W11755190)		Appelez-nous	-
21	W11821253		Knob, Induction (black Ore)   (Replaces: W11731289)		Appelez-nous	-
22	W11820147		Button Assembly, Oven Start (black Ore)   (Replaces: W11769831)		Appelez-nous	-
23	W11765213		Screw   (Replaces: W11736176)				$ 29.86
24	W10130760		Bracket, Moving Console (left)				$ 75.94
25	W10130759		Bracket, Moving Console (right)				$ 75.94
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	W11790530		Harness, Main (36 In)   (Replaces: W11745817)		Appelez-nous	-
	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
	W11790531		Harness, Communication   (Replaces: W11766035)				$ 139.03
	W11766172		Line Filter   (Replaces: W11733662)			Immediately	$ 182.07
	W11765166		Harness, User Interface Display   (Replaces: W11705029)		Appelez-nous	-
	W11766171		Harness, Console   (Replaces: W11698528)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11321066		Cord, Power   (Replaces: W11212216)				$ 118.94
	W10780278		Harness, Door Lock			Immediately	$ 95.87
	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88

    View Diagram in Separate Window       Print Part List
