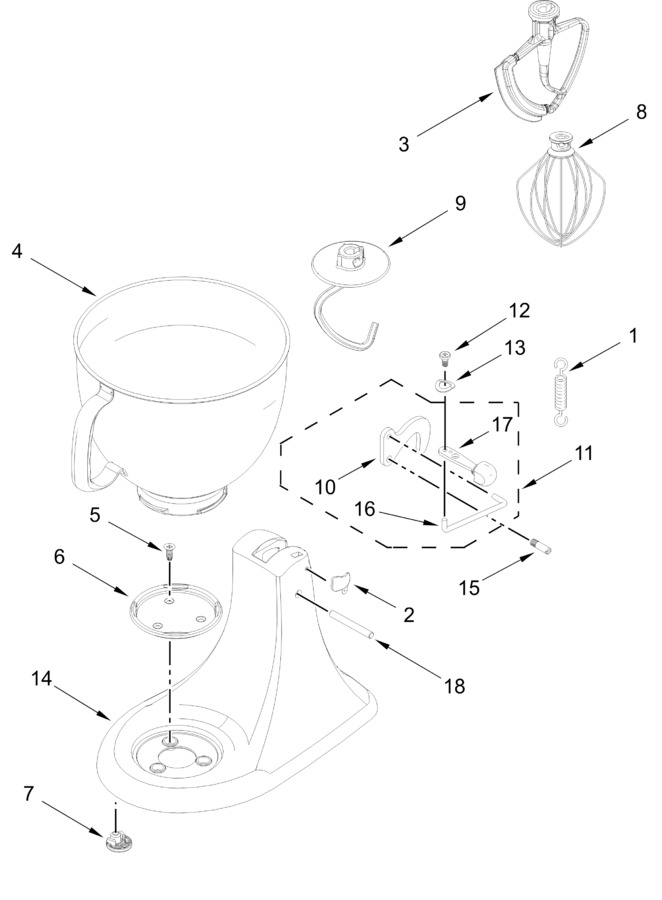

Base And Pedestal Unit Parts


Case, Gearing And Planetary Unit Parts


Color Variation Parts


Motor And Control Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11188450		Spring, Lock Lever   (Replaces: W10509949)		Appelez-nous	-
2	WP3184264		Headlock, Snap (black)   (Replaces: 3184264)				$ 8.20
3	W11672200		Beater, Flat (silent Silver)   (Replaces: W11567397)				$ 16.08
4	W11528689		Bowl, 5 Qt.   (Replaces: W11259899)				$ 112.86
5	W11544572		Screw   (Replaces: 3400020)				$ 8.41
6	WPW10191926		Cap, Bowl Screw   (Replaces: W10191926)			Immediately	$ 19.03
7	W11736697		Foot   (Replaces: W11626982)		Appelez-nous	-
8	WP9704329		Whip, Wire   (Replaces: 9704329)			Immediately	$ 29.90
9	W11606668		Hook, Dough (silent Silver)   (Replaces: W11555367)		Appelez-nous	-
10	W11246352		Latch   (Replaces: 9709055)				$ 8.57
11	W11416057		Latch, Link Assembly (chrome)   (Replaces: W10471368)		Appelez-nous	-
12	6011-006971		Screw   (Replaces: 110679)			Immediately	$ 3.59
13	WP116241		Washer, Spring   (Replaces: 116241)				$ 5.19
14	ARI78E3EA5DE827665772CF38F1975F320A		Pedestal (refer To Color Variation Parts Page)		Appelez-nous	-
15	W10802060		Screw   (Replaces: W10572158)				$ 5.21
16	W11232016		Link, Latch   (Replaces: 24450)				$ 7.83
17	W11676543		Lever, Latch (chrome)   (Replaces: W10471367)		Appelez-nous	-
18	WP16910		Pin, Hinge   (Replaces: 16910)			Immediately	$ 4.87
