Jar Assembly Parts

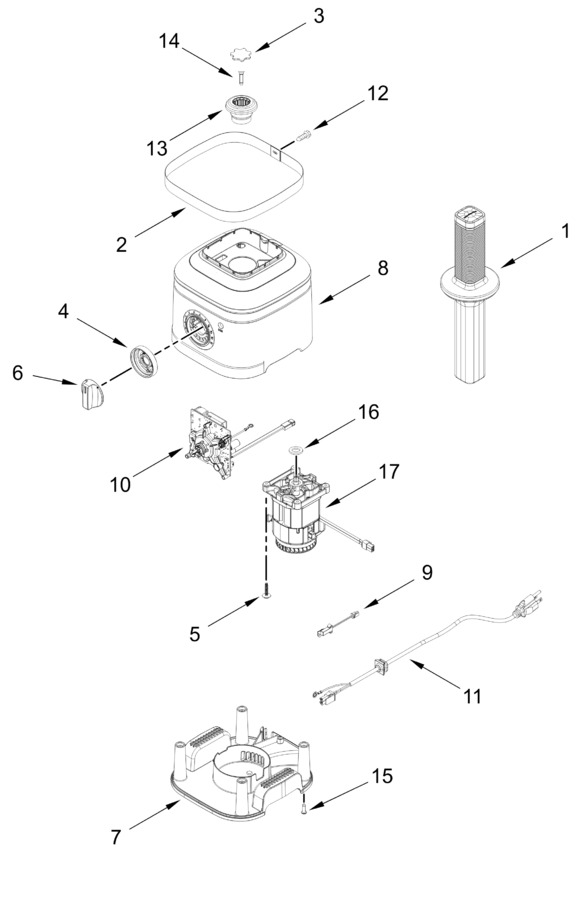

Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11503272		Tamper   (Replaces: W11392881)		Appelez-nous	-
2	W11731849		Trimband   (Replaces: W11179370)		Appelez-nous	-
3	W11486757		Plug, Coupler   (Replaces: W11219397)				$ 8.14
4	W11627537		Bezel, Rotary Switch   (Replaces: W11214276)		Appelez-nous	-
5	WP3395530		Screw   (Replaces: 697773)				$ 8.57
6	W11835917		Knob, Rotary Switch   (Replaces: W11627125)		Appelez-nous	-
7	W11684609		Base   (Replaces: W11183716)		Appelez-nous	-
8	W11279715		Upper Base (contour Silver)		Appelez-nous	-
9	W11627538		Reed Switch   (Replaces: W11238803)		Appelez-nous	-
10	W11580223		Electronic Control   (Replaces: W11518715)		Appelez-nous	-
11	W11763729		Power Cord   (Replaces: W11445182)		Appelez-nous	-
12	WP3196170		Screw   (Replaces: 3400617)				$ 7.55
13	W11627528		Coupler   (Replaces: W11294881)				$ 12.57
14	W11486756		Screw, Coupler   (Replaces: W11174445)		Appelez-nous	-
15	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
16	W11643384		Seal, Motor   (Replaces: W11211960)			Immediately	$ 23.63
17	W11443916		Motor   (Replaces: W11187673)		Appelez-nous	-
